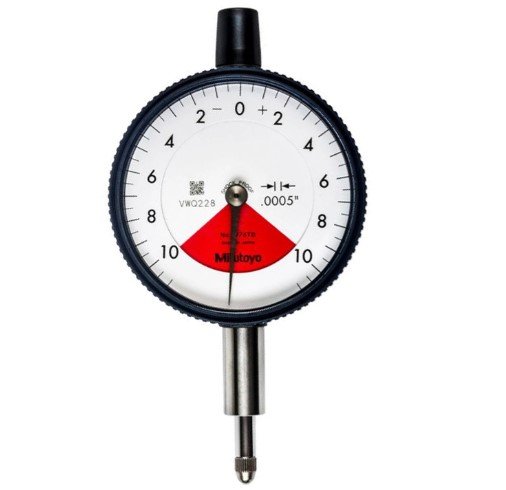

Mitutoyo 2976TB | Dial Indicator | Flat Back | AGD/ANSI | Series 2 | One Revolution Type | Graduation 0.0005 inch | Range 0.02 inch
Genuine Mitutoyo instruments from General Tech Services LLC, Saudi Arabia, with free Saudi Arabia shipping available.
Part No. 2976TB
Product Overview
The Mitutoyo 2976TB is an analogue mechanical dial indicator from Mitutoyo Series 2, designed for comparative measurement, runout inspection, machine setup and dimensional checking where fine inch-based readings are required.
It provides a 0.02 in measuring range with a 0.0005 in graduation. The inch-reading dial is suitable for applications where small dimensional deviations need to be observed during inspection, comparison or machine setup.
The 2976TB uses a one-revolution dial design, with the full measuring range covered in less than one pointer revolution. This allows the reading to be taken directly from the dial without tracking multiple pointer turns, which can be useful for comparative and go/no-go inspection.
The flat-back configuration is intended for compatible mounting arrangements where the rear of the indicator is positioned against a holder or fixture. The ANSI/AGD type designation identifies the indicator with American Gage Design dimensional conventions for compatible inch-standard mounting systems.
Typical applications include checking runout and concentricity on lathes and other machine tools, comparing flatness and height on a surface plate, and setting fixtures and tooling. Before ordering, confirm the measuring range, graduation, back configuration and mounting arrangement against your application.
The suffix in 2976TB identifies the exact product variant, so the complete part number should be used when ordering or replacing an existing indicator.
General Tech Services LLC supplies genuine Mitutoyo measuring instruments to industrial customers across Saudi Arabia. For a quotation, provide the part number, required quantity and delivery city so the team can confirm availability and pricing.
Key Benefits
- 0.0005 in graduation for fine inch-based comparative readings
- 0.02 in measuring range
- One-revolution dial for direct reading across the full range
- Mitutoyo Series 2 mechanical design
- Flat-back configuration for compatible fixture and holder mounting
- ANSI/AGD type for inch-standard mounting applications
- Genuine Mitutoyo instrument with free Saudi Arabia shipping available
Who This Product Is Best For
The Mitutoyo 2976TB is suitable for:
- Quality inspectors performing fine comparative measurement
- Machinists checking runout and setting up machine work
- Toolroom technicians inspecting tooling and fixtures
- Maintenance technicians performing dimensional checks
- Production teams carrying out comparative or go/no-go inspections
- Industrial buyers in Saudi Arabia sourcing genuine Mitutoyo instruments
For replacement applications, compare the existing indicator's range, graduation, back configuration and mounting arrangement before ordering.
How to Install & Use It
- Confirm that the indicator range, graduation and flat-back configuration match the intended application.
- Secure the indicator to a compatible stand, holder or fixture using the appropriate flat-back mounting arrangement.
- Position the contact point against the reference surface or workpiece and apply suitable preload.
- Set the reference position or zero using the dial bezel.
- Move the workpiece or indicator through the required measurement and observe the pointer position.
- Because this is a one-revolution dial, read the measurement directly within the specified range without counting multiple pointer revolutions.
- Remove the contact point from the workpiece after measurement and store the indicator appropriately.
Use a suitable mounting arrangement and avoid excessive force on the contact point or indicator mechanism.
Frequently Asked Questions
What is the measuring range and graduation of the Mitutoyo 2976TB?
The measuring range is 0.02 in and the graduation is 0.0005 in.
Is the Mitutoyo 2976TB inch or metric?
The 2976TB is an inch-reading dial indicator.
What back type does the 2976TB have?
It has a flat-back configuration.
Is the Mitutoyo 2976TB an ANSI/AGD type indicator?
Yes. The supplied product information identifies the 2976TB as an ANSI/AGD type indicator.
Is the Mitutoyo 2976TB a one-revolution dial indicator?
Yes. The full 0.02 in measuring range is covered in less than one pointer revolution.
What is the Mitutoyo 2976TB used for?
It can be used for comparative measurement, runout and concentricity checks, flatness and height comparison, machine setup, fixture setup and tooling inspection.
What is the difference between the Mitutoyo 2976TB and 2909A-62?
The 2976TB has a 0.02 in range, 0.0005 in graduation and flat-back configuration. The 2909A-62 has a 0.04 in range, 0.0005 in graduation and lug-back configuration. The appropriate model should be selected according to the required measuring range and mounting arrangement.
Is delivery available across Saudi Arabia?
Yes. Free Saudi Arabia shipping is available. Call +966 569 289 544 for current pricing and lead time.
What information should I provide for a quotation?
Send the full model number, required quantity and delivery city. If replacing an existing indicator, include its model number and your stand, fixture or holder type where available.
