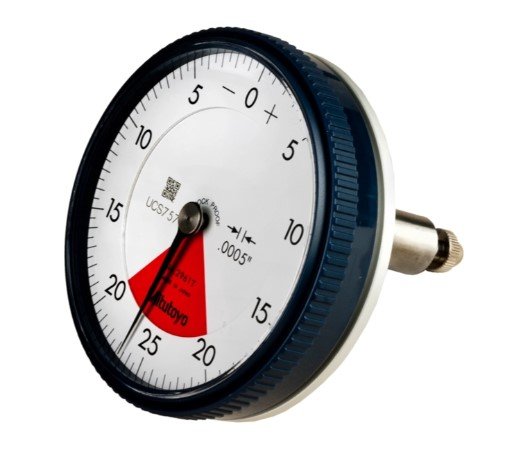

Mitutoyo 2961T | Dial Indicator | Back Plunger | AGD/ANSI | Series 2 | One Revolution Type | Graduation 0.0005inch | Range 0.04inch
Part No. 2961T | Range 0.04 inch | Graduation 0.0005 inch | Back Plunger | One Revolution
Product Overview
The Mitutoyo 2961T is an ANSI/AGD-type Series 2 plunger dial gauge with a back plunger design, one-revolution dial, 0.0005 inch graduation, and 0.04 inch measuring range. It is designed for high-resolution comparative inspection where very small deviations need to be identified accurately.
Made to American Gage Design dimensions, the 2961T is compatible with common inspection stands, fixtures, and holders used in machine shops and inspection rooms. Its 0.0005 inch graduation over 0.04 inch of travel makes it suitable for checking precision-ground parts, setting gauges, and comparing components against a master.
The back plunger design positions the plunger at the rear of the gauge, perpendicular to the dial. This allows convenient mounting in confined spaces while keeping the dial face visible to the operator. The one-revolution dial displays the complete 0.04 inch measuring range in a single turn, helping speed up readings and reducing the risk of miscounting revolutions.
The mechanical movement is designed for dependable day-to-day use on the shop floor. Need a different resolution or shorter travel? The Mitutoyo 2991A-10 offers 0.0001 inch graduation over a 0.008 inch range.
Key Benefits
-
0.0005 inch graduation for fine, high-resolution readings
-
0.04 inch measuring range for precision comparative checks
-
ANSI/AGD standard design for compatibility with common stands, holders, and accessories
-
Back plunger design for mounting in confined spaces
-
One-revolution dial shows the full range in a single turn
-
Robust mechanical movement for dependable workshop use
-
Genuine Mitutoyo part supplied and supported locally in Saudi Arabia
+966 569 289 544 for pricing and stock availability.
Who This Product Is Best For
-
Quality-control inspectors who need high resolution for comparative measurement
-
Engineers mounting a gauge in tight spaces on machines and fixtures
-
Maintenance teams replacing an existing ANSI/AGD back plunger gauge with a like-for-like part
-
Calibration labs and buyers standardising their inspection equipment on Mitutoyo
How to Use It
-
Mount the gauge securely in its holder or fixture, with the plunger square to the surface being measured.
-
Pre-load the plunger slightly, then rotate the bezel to set zero on a reference surface or master.
-
Move the part or the gauge across the feature and read the deviation directly from the dial.
-
Retract the plunger gently after use and store the gauge clean, dry, and protected.
Frequently Asked Questions
What is the Mitutoyo 2961T dial gauge used for?
It is used for high-resolution comparative inspection where very small deviations matter. The 0.0005 inch graduation and 0.04 inch range make it suitable for fine-tolerance work.
What are the graduation and range of the 2961T?
The Mitutoyo 2961T has a 0.0005 inch graduation and a 0.04 inch measuring range.
What does ANSI/AGD mean on a dial gauge?
ANSI/AGD refers to the American Gage Design standard for dial indicators. Gauges built to this design use standard dimensions that allow compatibility with common stands, holders, and accessories.
What is a back plunger dial gauge?
On a back plunger gauge, the plunger comes out of the rear, perpendicular to the dial. This makes it easier to fit the gauge in confined spaces while keeping the dial readable.
What does a one-revolution dial mean?
The pointer covers the full 0.04 inch range in a single turn, so there is no revolution counter to read and less chance of misreading.
Which should I choose: the 2961T or the 2991A-10?
Choose based on the resolution and travel required. The 2961T provides 0.0005 inch graduation over a 0.04 inch range, while the 2991A-10 provides 0.0001 inch graduation over a 0.008 inch range.
Is the genuine Mitutoyo 2961T available in Saudi Arabia?
Yes. General Tech Services LLC supplies the genuine Mitutoyo 2961T in Saudi Arabia. Call +966 569 289 544 for pricing, lead time, and current availability.
Request Pricing and Availability
For genuine Mitutoyo 2961T dial gauges in Saudi Arabia, contact General Tech Services LLC for current pricing and availability.
+966 569 289 544
