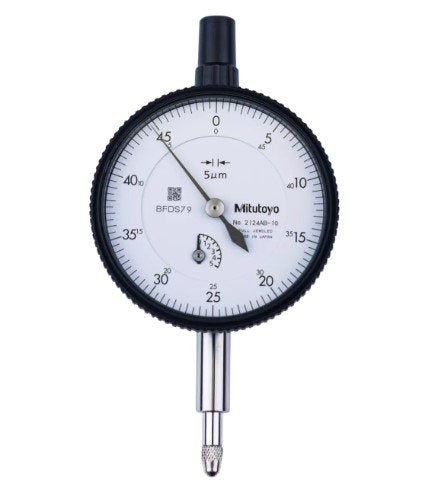

Mitutoyo 2124AB-10 | Dial Gauge | Flat Back | ISO Type | Series 2 | Jewelled Bearing | Graduation 0.001 or 0.005 mm | Range 5 mm
The Mitutoyo 2124AB-10 is a high-precision dial gauge designed for accurate measurements in various industrial applications. It features a flat back design, allowing for easy mounting and stable readings. With a measuring range of 5 mm and graduations of 0.005 mm, it provides fine resolution for precise measurements. The gauge is equipped with a jewelled bearing, ensuring smooth operation and durability. Compliant with ISO standards, it guarantees reliability and accuracy. As part of Mitutoyo’s Series 2, it reflects the brand’s commitment to quality and performance.
- Specifications
- Features
- Downloads
| Analog/Digital | Analog |
| Contact point | Carbide tipped |
| Dial Reading | +/-0.0 - 50.0 |
| Graduation | 0.005 mm |
| Hysteresis | 3 µm |
| Inch-Metric | Metric |
| Measuring Force | 0.4 - 1.5 N |
| Measuring range | 11 µm |
| Range | 5 mm |
| Repeatability | 2.0 µm |
| Series | 2 |
| Stem Dia | 8.0 mm |
| Thread type | M 2.5 x 0.45 mm |
| Type | Dial Gauge |
| Type | EN ISO Standard |
| Weight | 137 g |
- Flat Back Design – Ideal for flat surface mounting and fixture setups.
- High Resolution – Offers precise graduations of 0.001 mm or 0.005 mm.
- 5 mm Range – Suitable for small displacement and fine tolerance measurements.
- Jewelled Bearing – Provides smooth movement and extended operational life.
- ISO Type Compliance – Meets international standards for precision instruments.
- Series 2 Construction – Known for reliability and accuracy in demanding environments.
Related Products

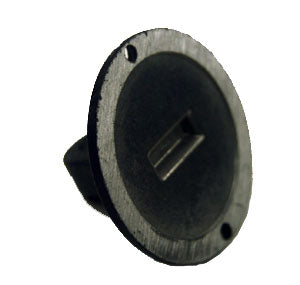

Flexbar 20269 | Flexbar-Compac Dial Indicator | Swiss made
Flexbar 20269 | Flexbar-Compac Dial Indicator | Swiss made

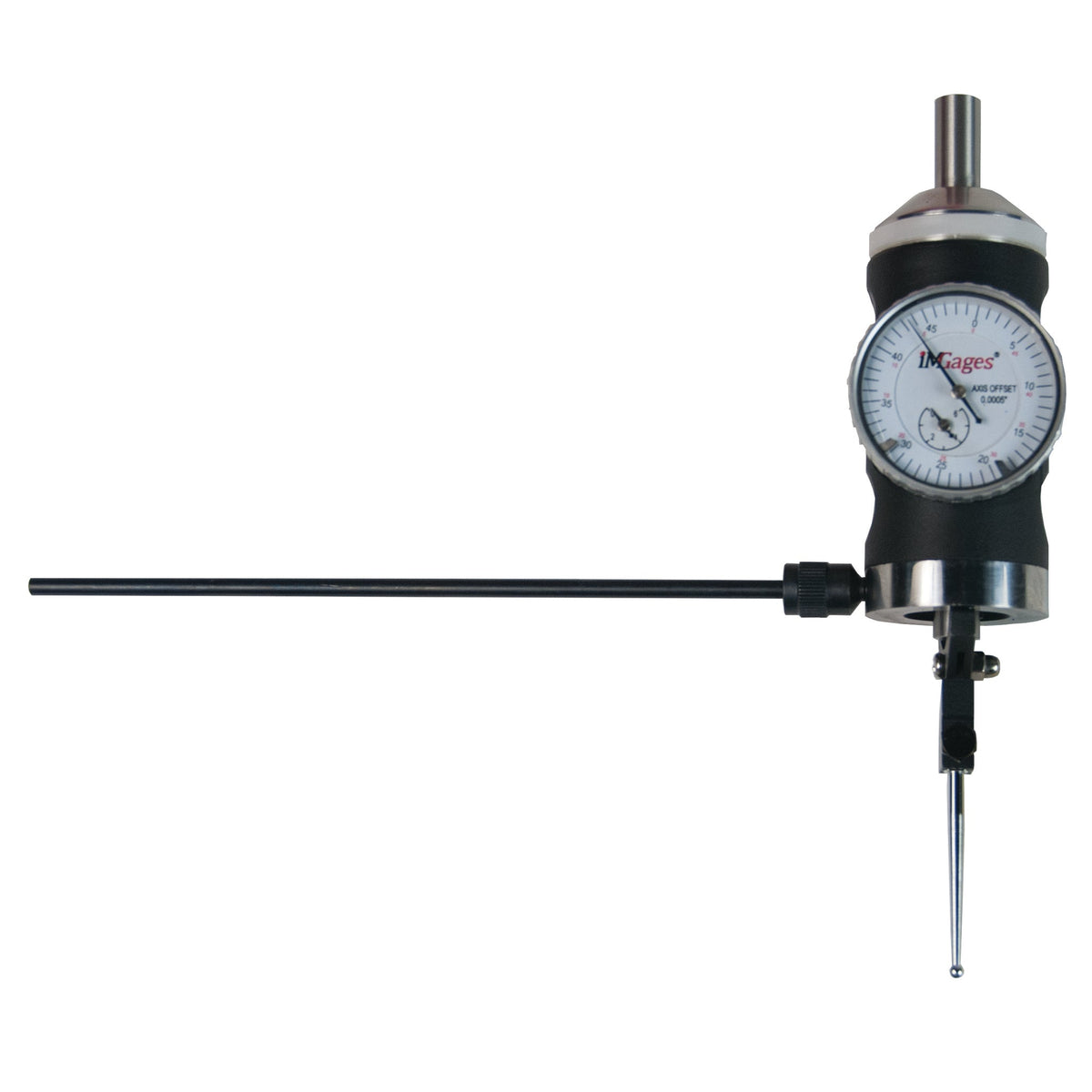

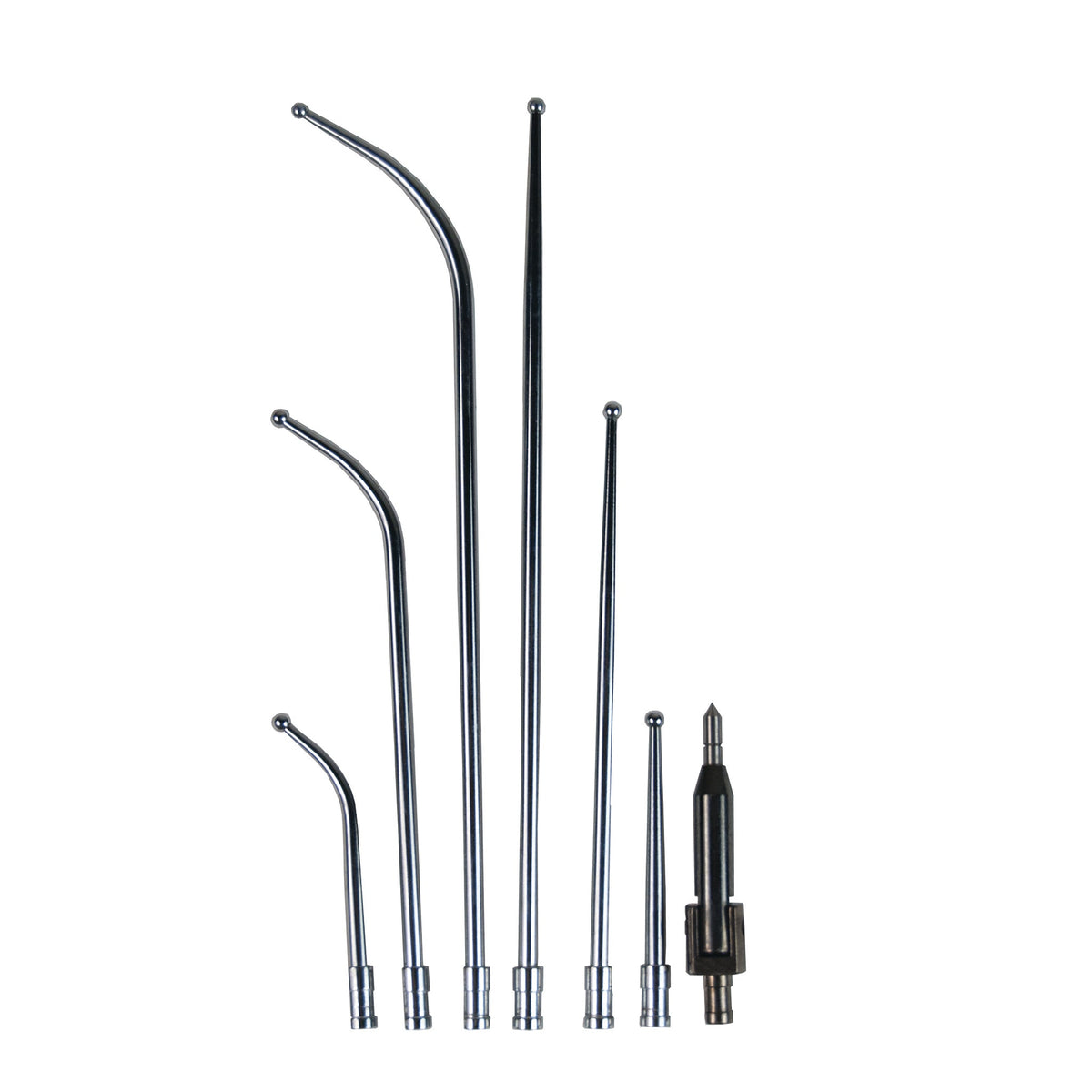

Flexbar 15920 | Co-Ax Centering Indicator Set | Internal 5/32 to 4-1/2 in
Flexbar 15920 | Co-Ax Centering Indicator Set | Internal 5/32 to 4-1/2 in

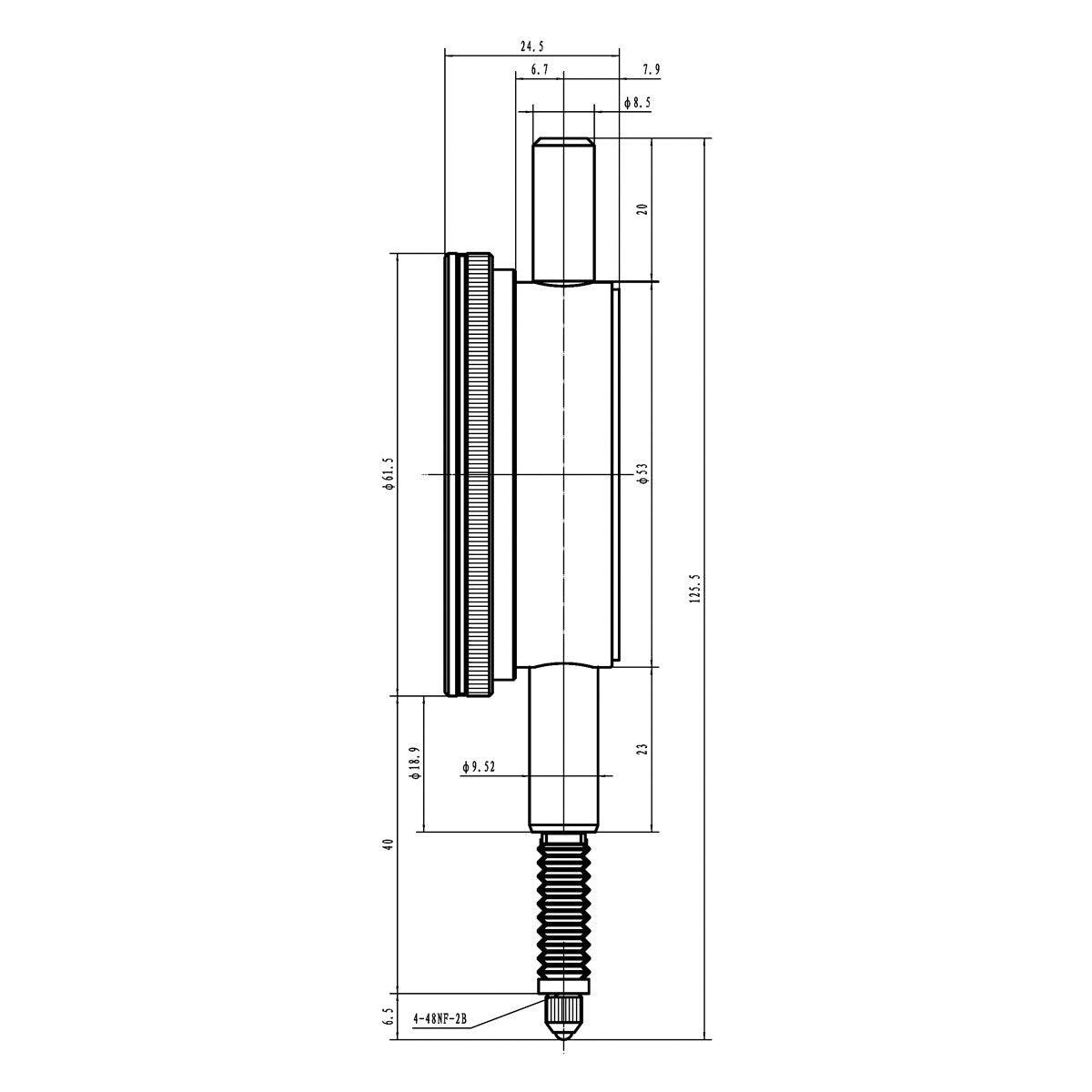

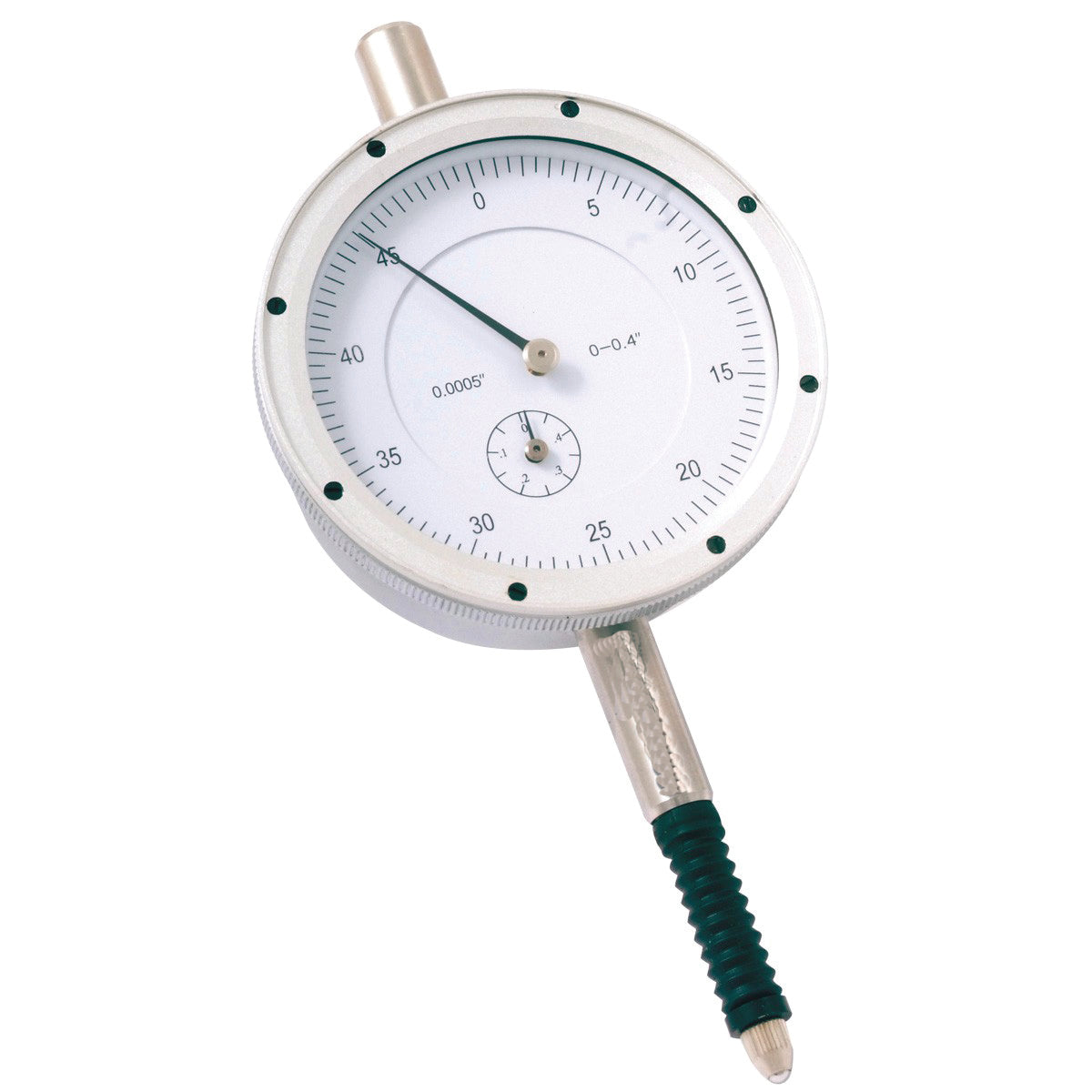

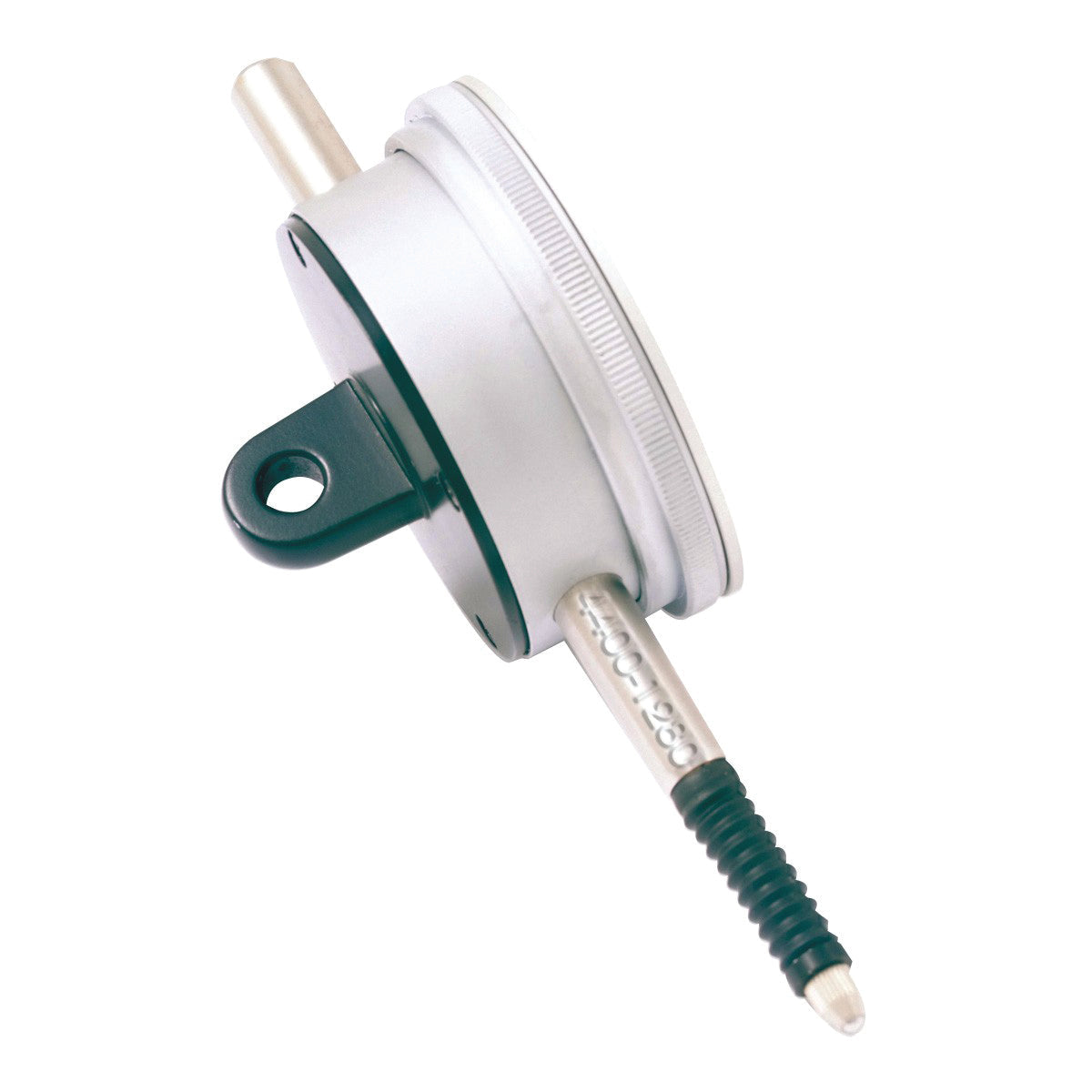

Flexbar 12872 | Waterproof Dial Indicator | 1" travel, .001" reading
Flexbar 12872 | Waterproof Dial Indicator | 1" travel, .001" reading
Flexbar 12749 | Premium Precision Dial Indicator AGD 2 | 20 mm range, 0.01 mm graduation
Flexbar 12749 | Premium Precision Dial Indicator AGD 2 | 20 mm range, 0.01 mm graduation

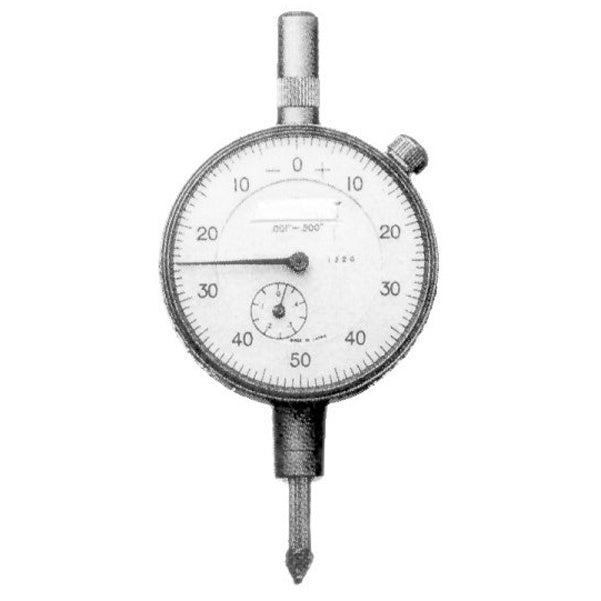

Flexbar 12744 | Premium Precision Dial Indicator AGD 2 | .050" range, .0001" graduation
Flexbar 12744 | Premium Precision Dial Indicator AGD 2 | .050" range, .0001" graduation
Flexbar 12856 | Precision Dial Indicator AGD1 | 0.250 in range, 0-50-0, 0.001 in
Flexbar 12856 | Precision Dial Indicator AGD1 | 0.250 in range, 0-50-0, 0.001 in

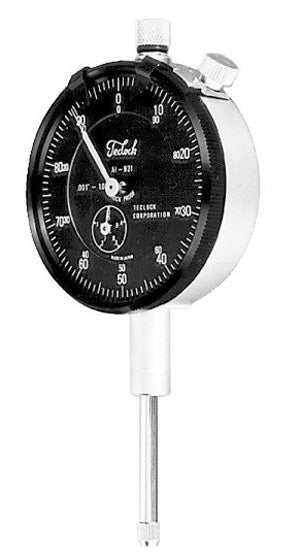

Flexbar 12742-B | Premium Precision Dial Indicator AGD 2 | 1.000" range, .001" graduation, black face
