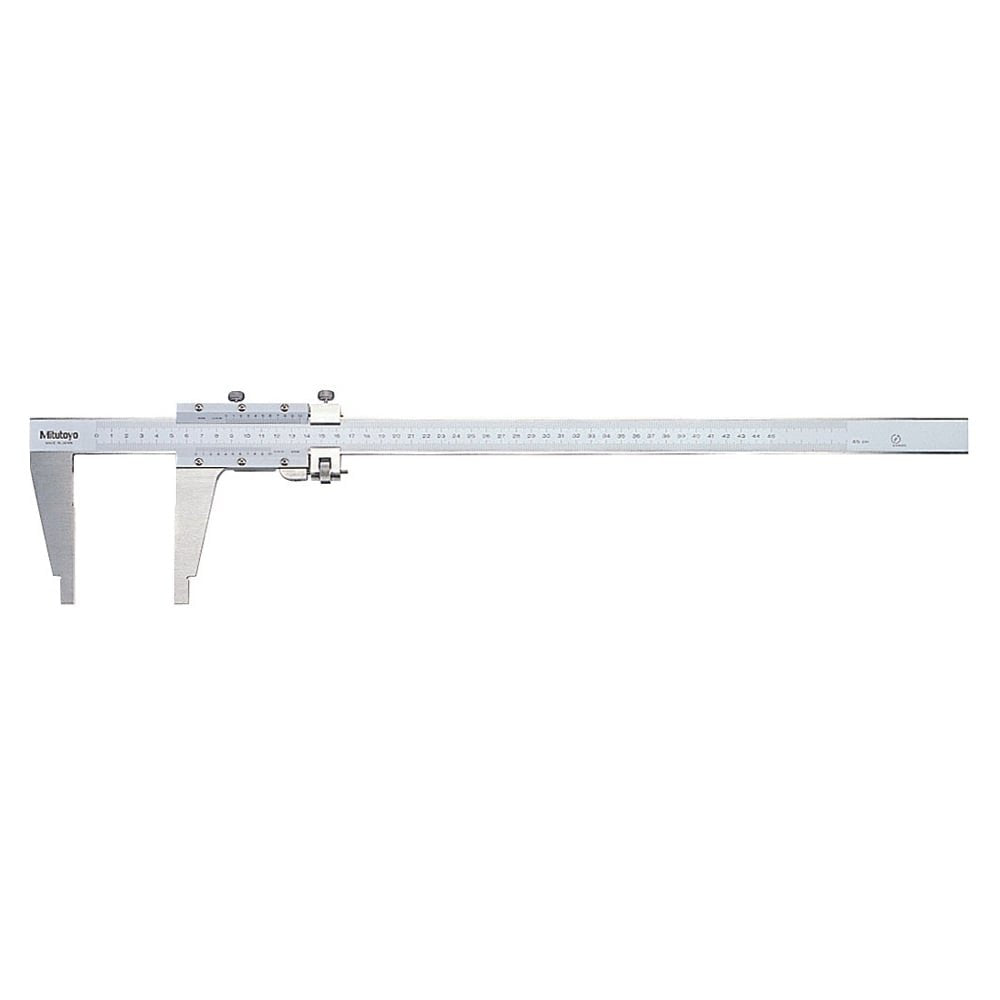

Mitutoyo 160-128 | Nib Jaw Vernier Caliper | 0–450 mm, 0.02 mm, Fine Adjustment
Measuring 0–450 mm in 0.02 mm steps, the Mitutoyo 160-128 is a metric vernier caliper with nib-style jaws and fine adjustment. Accuracy is ±0.05 mm, and outside and inside dimensions are read on separate verniers.
- Range 0–450 mm with 0.02 mm graduation
- Accuracy ±0.05 mm on the 160-128
- Nib jaws with fine-adjustment wheel on the 450 mm frame
- Separate outside and inside vernier scales (160-128)
- Hardened stainless steel with satin-chromed scales, 450 mm model
- Specifications
- Features
- Downloads
| Part Number | 160-128 |
| Brand | Mitutoyo |
| Product Type | Vernier Caliper |
| Jaw Type | Nib |
| Range | 0–450 mm |
| Graduation | 0.02 mm |
| Accuracy | ±0.05 mm |
| Measuring Units | Metric |
| Analogue/Digital | Analogue |
| Adjustment | Fine-adjustment wheel |
| Construction | Hardened stainless steel, satin-chromed scales |
Inside and outside measurements can be read directly from the upper and lower vernier scales.
• The jaws have radiused measuring faces for accurate inside diameter (ID) measurement
