Part Number : 103-146-10H

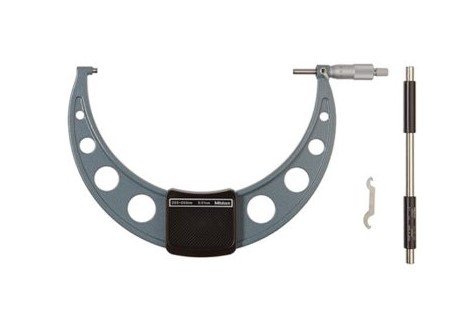

The Mitutoyo 103-146-10H is an outside micrometer from Series 103, designed for precise external dimension measurements. It offers a measuring range of 225 to 250 mm and a graduation of 0.01 mm. With an accuracy of ±5 µm, it provides highly reliable precision. The micrometer features carbide-tipped measuring faces for durability and accuracy. It also includes a ratchet stop mechanism to ensure consistent measuring pressure. The baked-enamel finish enhances resistance to wear and corrosion, making it suitable for industrial applications.

Availability: Sold out

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Accuracy	+/-5 µm
Digital/Analog	Analog
Flatness	0.6 µm
Graduation	0.01 mm
Inch-Metric	Metric
Measuring Force	5 - 10 N
Parallelism	4 µm
Range	225-250 mm
Scale	Thimble and sleeve satin chrome finish, ƒ ̧18 mm
Spindle pitch	0.5 mm
Spindle thread	With spindle lock, ƒ ̧6,35 mm (¢°¤300 mm) ƒ ̧ 8 mm (>300 mm)
Type	Outside Micrometer
Weight	1.25 Kg

Measuring Range: 225 to 250 mm, ideal for medium-sized external measurements.
Graduation: 0.01 mm, providing precise and fine measurement resolution.
Accuracy: ±5 µm, ensuring high precision and reliability for critical measurements.
Carbide-Tipped Measuring Faces: These ensure durability and reduce wear for long-lasting performance.
Ratchet Stop Mechanism: Guarantees consistent measuring force, improving repeatability and accuracy.
Baked-Enamel Finish: Provides resistance to corrosion and wear, enhancing the micrometer's longevity.
