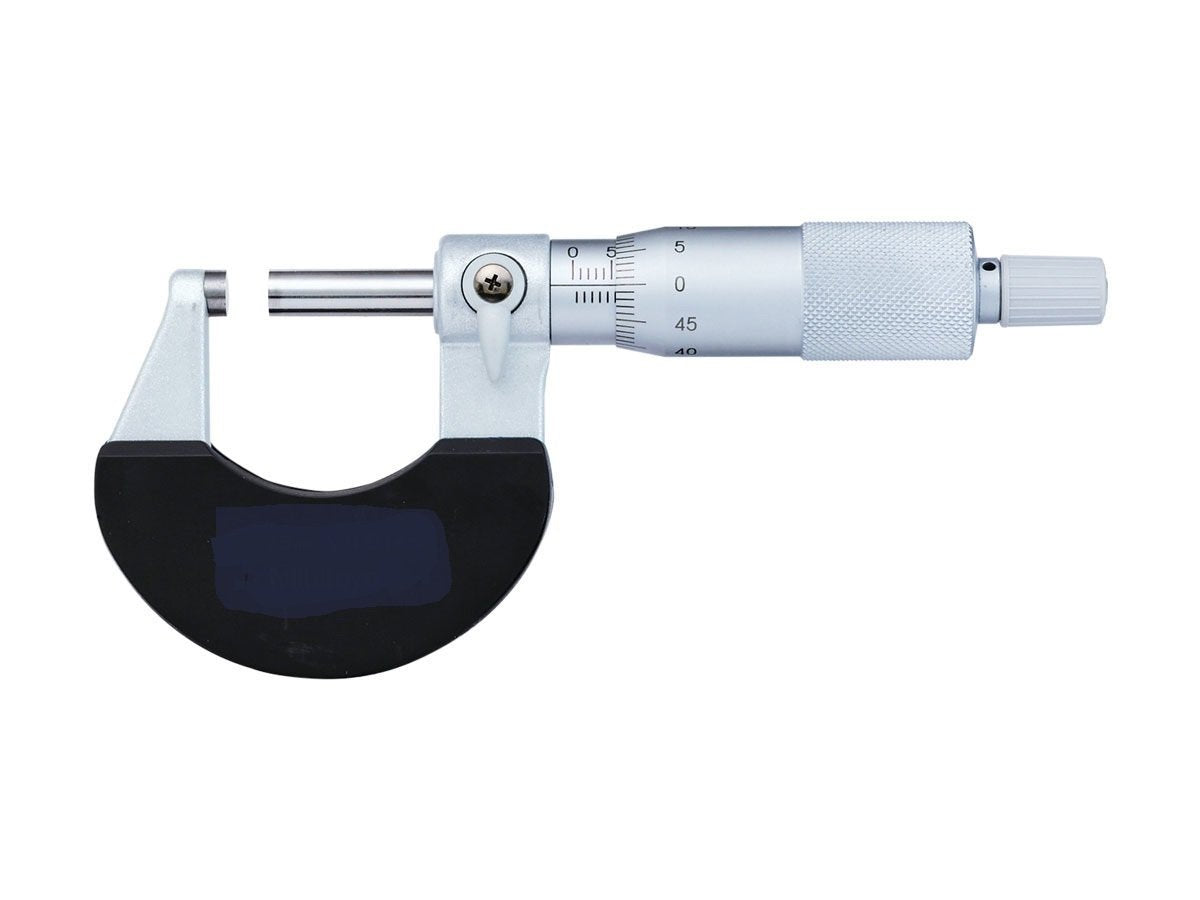

Mitutoyo 102-304 | Economy Micrometer | Range 75 - 100 mm, Graduation 0.01 mm | Ratchet stop

Name: Mitutoyo 102-304 | Economy Micrometer | Range 75 - 100 mm, Graduation 0.01 mm | Ratchet stop
Brand: Mitutoyo
SKU: 102-304
Availability: OutOfStock

Part Number : 102-304

Because of the taper of its frame on the anvil side, the Mitutoyo ratchet stop outside micrometer is suitable for measuring metal and non-metal workpieces in small spaces and narrow slots. For exact, repeatable measurements, a ratchet-stop mechanism applies homogeneous pressure to a workpiece.

Availability: in stock

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Accuracy	+/-3 µm
Digital/Analog	Analog
Flatness	0.6 µm
Graduation	0.01 mm
Inch-Metric	Millimetre
Measuring surfaces	carbide
Parallelism	3 µm
Range	75¢°-¢°100 mm

For quick and easy measurement readings, the scale is laser etched on the thimble and sleeve.
Thermal expansion is minimised by a heat-insulated frame, allowing for consistent measurements in a variety of situations.
Carbide measuring faces on the spindle and anvil resist wear, allowing surfaces to remain flatter and more accurate for longer.
A speeder is always accessible for rapid spindle rotation.
Except for 0-25mm sizes, all models come with a standard bar.
The item is packaged in a custom-fit plastic case.
Ratchet Stop
