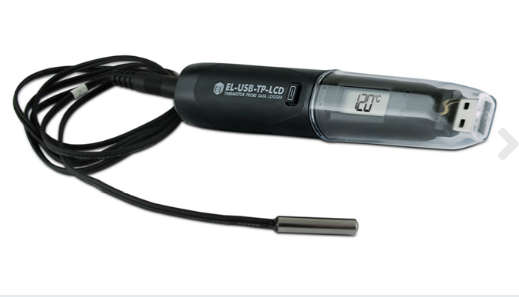

Lascar EasyLog | EL-USB-TP-LCD Thermistor Probe Data Logger with LCD
This standalone data logger records and displays over 32,000 temperature readings from the supplied thermistor probe. The EL-USB-TP-LCD features an LCD and push-button which allow the user to cycle through the most recent, highest and lowest stored readings. The EL-WIN-USB software enables quick configuration and data download via the USB port available to download for free. Supplied with thermistor probe and long-life lithium battery.
- Specifications
- Features
- Downloads
| Accuracy | +/-0.6°C |
| Battery Life | 2 Years |
| Logging Rate | User selectable between 1 second and 12 hours |
| Measurement Range (Temp) | -40°C to 125°C |
| Operating Temperature | -35 to +80°C |
| Type | Display |
| Type | USB |
▪ -40 to +125°C (-40 to +257°F) measurement range
▪ Stores over 32,000 readings
▪ EasyLog software available as a free download
▪ Logging rates between 1 second and 12 hours
▪ High contrast LCD, with four digit temperature display function
▪ Immediate, delayed and push-to-start logging
▪ User-programmable alarm thresholds
▪ Status indication via red and green LEDs
▪ Supplied with a Type 2 thermistor probe
