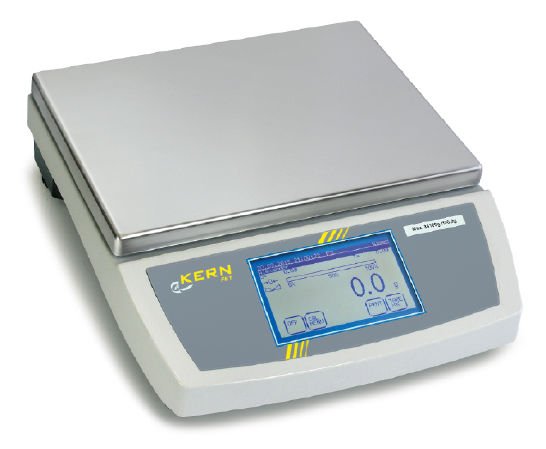

KERN FKT 0.5L | Industrial Bench Scale | 30 kg, d = 500 mg
Weighing up to 30 kg in steps of 500 mg, the KERN FKT 0.5L uses a stainless steel plate measuring 340 × 240 mm. Control outputs on the FKT 0.5L (optocoupler, digital I/O, 35 V / 80 mA) can switch relays, signal lamps or valves during dispensing or checkweighing.
- Reproducibility 500 mg, linearity 1 g
- 2 h warm-up and 3 s stabilisation time on the FKT 0.5L
- Piece counting with a 5 g minimum piece weight (500 mg under laboratory conditions), plus percentage determination and an animal weighing program
- Tolerance weighing on the FKT 0.5L, plus hook for suspended weighing
- Up to 20 h of battery operation with the backlight off (10 h with backlight on); rechargeable battery optional for the FKT 0.5L
- Specifications
- Features
| Part Number | FKT 0.5L |
| Brand | KERN |
| Linearity | 1 g |
| Reproducibility | 500 mg |
| Weighing Surface (W × D) | 340 × 240 mm (13.4×9.45 in) |
| Weighing Plate Material | Stainless steel |
| KERN Item Number | FKT 30K 0.5L |
| Maximum Capacity | 30 kg (66.1 lb) |
| Readout (d) | 500 mg |
| Stabilisation Time | 3 s |
| Weighing Units | ct dwt g kg lb mo oz ozt t tl (HK) tl (Singap. Malays) tl (Tw) |
| Operating Time (Backlight Off) | 20 h |
| Recommended Adjusting Weight | 20 kg (E2); 10 kg (E2) |
| Mains Input | 100 V - 240 V |
- Capacity display, with& 1-2, 5-7, 7-9
- Dispensing aid (subtractive/additive), with& 3, 4
- Net/gross display, permanent, with& 1, 3-5, 8-11
- Variable reference quantity, with& 2
- Automatic reference optimisation, with& 2
- PRE-TARE numerical or from the memory unit, with& 1-7, 11
- Input of item or batch description, operator etc., with& 1-7
- Freely programmable weighing unit, e.g. display direct in special units such as length of thread g/m, grammage g/m2, or similar, with& 9
- Date/time, with& 1-11
- Statistical function, with& 1
- GLP printout, with& 1-11
- Individual formatting of up to 16 printer forms, recipes, operating mode master data in MS Excel, import via RS-232, for examples, see the internet, with& 1-11
