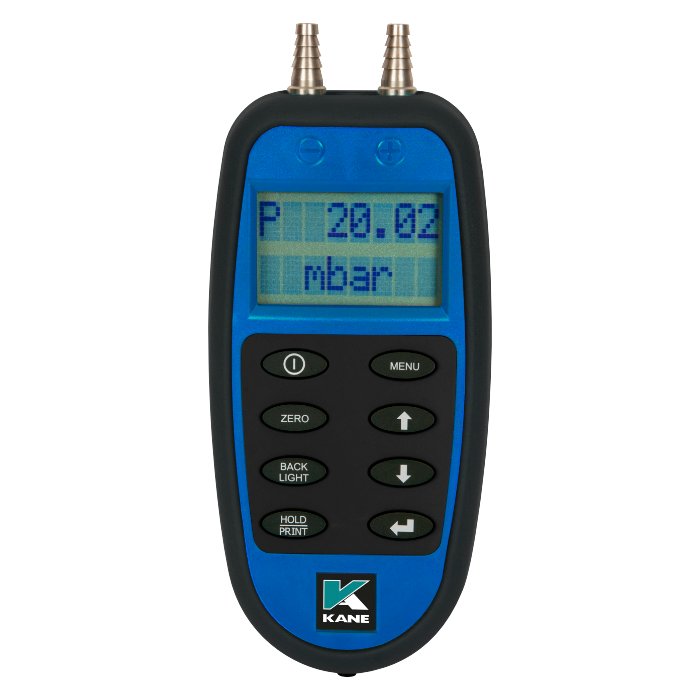

Kane 3500-5 | Differential Pressure Meter | Range 400mbar
Differential pressure measurement does not have to be difficult; the Kane 3500-5 makes it simple! The 3500-5, which is highly accurate and has excellent resolution, smoothing, and temperature compensation functions, can measure differential pressure up to 400mbar in selectable measurement units of mbar, mmH20, Pa, kPa, PSI, mmHg, hPa, and inH20. The 3500-5 also has built-in memory, which allows results to be saved internally. With fully adjustable logging intervals, up to 250 readings can be set to log automatically or manually. Dedicated let-by, stabilisation, and tightness testing procedures with adjustable duration can also be stored directly in the memory.
- Specifications
- Features
- Downloads
| Dimensions | 160mm x 80mm x 40mm (180mm incl. spigots |
| Operating Temperature | 0 to 45°C 10 to 90% RH (non-condensing) |
| Power Supply | 9V PP3 alkaline battery |
| Range | +/-3000Pa to +/-400hPa |
| Resolution | 1Pa to 0.1hPa |
| Weight | 310g with battery |
400mbar (5psi) range
0.1 pascal resolution
Temperature compensation for greater precision
High and low resolution options are available.
Measurement units include mbar, mmH20, Pa, kPa, PSI, mmHg, hPa, and inH20.
The data hold function freezes the last value recorded on the screen MAX/MIN.
Allowance, stability, and tightness tests
Manual and automatic datalogging - memory capacity of up to 250 readings
