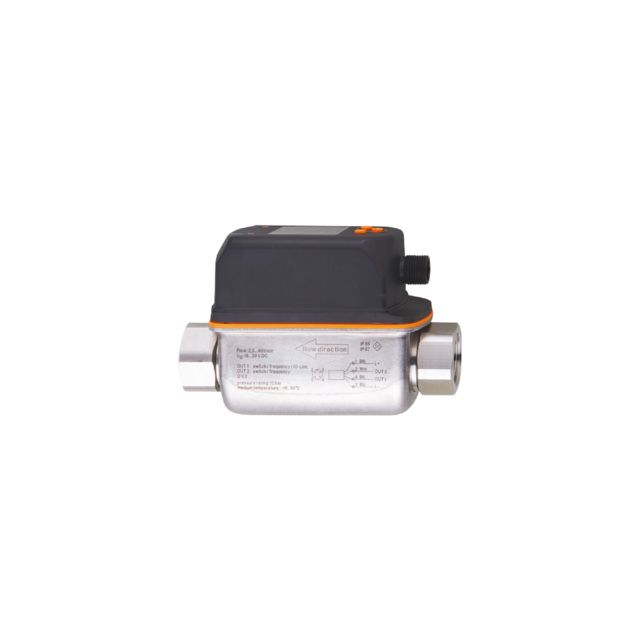

ifm SV5200, SV Series Flow Sensor for Coolants, Glycol Solutions, Water, 2 l/min Min, 40 L/min Max

Name: ifm SV5200, SV Series Flow Sensor for Coolants, Glycol Solutions, Water, 2 l/min Min, 40 L/min Max
Brand: ifm
SKU: SV5200
Availability: OutOfStock

Part Number : SV5200

Availability: in stock

Detailed Description
Specifications
Downloads

The ifm electronic Vortex Flow Meter with display is a robust instrument designed for industrial applications, featuring gold plated contacts for enhanced reliability. It effectively measures media such as water, glycol solutions, and coolants within a medium temperature range of -10 to 90°C and a pressure rating of up to 12 bar. For applications following CRN standards, it supports a maximum allowable working pressure of 4.8 bar. Operating with a voltage range of 18-30V DC and consuming less than 30mA of current, this flow meter offers excellent insulation with a minimum resistance of 100 MOhm. It is protected against reverse polarity and meets protection class III standards.

Reliable detection of flow and medium temperature
With switching output or frequency output and IO-Link
Display can be rotated for optimum alignment
Clearly readable colour display with red or green colour change
Suitable for water
Suitable for deionised water and cooling water
Convenient operation via buttons or parameter setting via IO-Link

Brand	ifm
Media Monitored	Coolants, Glycol Solutions, Water
Device Type	Flow Meter
Minimum Flow Rate	2 l/min
Maximum Flow Rate	40 L/min
Supply Voltage	30 V
Series	SV
