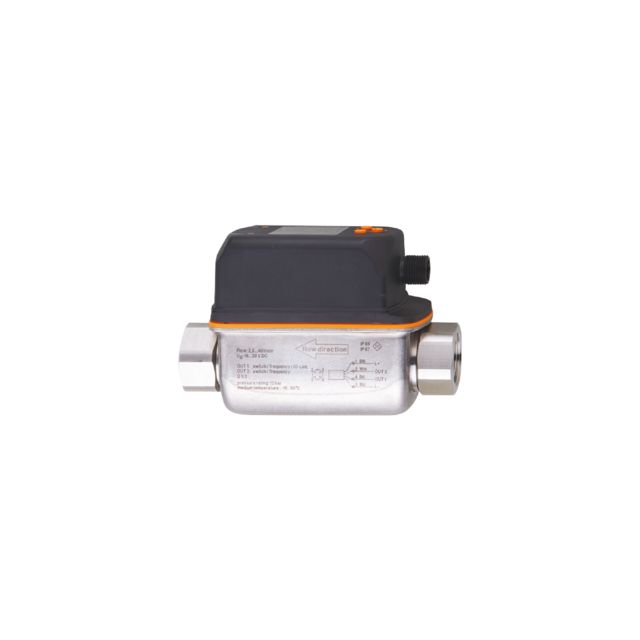

ifm SV4200, SV Series Flow Sensor for Coolants, Glycol Solutions, Water, 1 l/min Min, 20 L/min Max

Name: ifm SV4200, SV Series Flow Sensor for Coolants, Glycol Solutions, Water, 1 l/min Min, 20 L/min Max
Brand: ifm
SKU: SV4200
Availability: OutOfStock

Part Number : SV4200

Availability: Sold out

Detailed Description
Specifications

The ifm electronic Vortex Flow Meter with display features gold plated contacts to ensure robust performance. Designed for media such as water, glycol solutions, and coolants, it operates effectively across a temperature range of -10 to 90°C and can handle pressures up to 12 bar. For applications in colder environments up to 40°C, the maximum allowable working pressure is 3.9 bar. The flow meter operates with a voltage range of 18 to 30V DC and has a low current consumption of under 30mA. Its electrical design includes reverse polarity protection, a power on delay of less than 3 seconds, and a protection class of III. The meter features two digital outputs with configurable functions including switching and frequency signals, and supports PNP/NPN configurations with short circuit and overload protection.

Reliable detection of flow and medium temperature
With switching output or frequency output and IO-Link
Display can be rotated for optimum alignment
Clearly readable colour display with red or green colour change
Suitable for water
Suitable for deionised water and cooling water
Convenient operation via buttons or parameter setting via IO-Link

Brand	ifm
Media Monitored	Coolants, Glycol Solutions, Water
Device Type	Flow Meter
Minimum Flow Rate	1 l/min
Maximum Flow Rate	20 L/min
Supply Voltage	30
Series	SV
