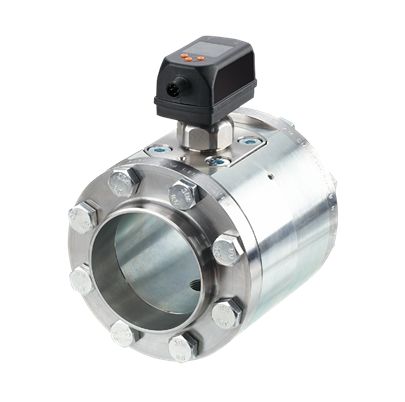

ifm SDG750, SDG Series Air Meter Flow Meter for Air, 0.6 m/s Min, 143.9 m/s Max

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm SDG750, SDG Series Air Meter Flow Meter for Air, 0.6 m/s Min, 143.9 m/s Max

Name: ifm SDG750, SDG Series Air Meter Flow Meter for Air, 0.6 m/s Min, 143.9 m/s Max
Brand: ifm
SKU: SDG750
Availability: OutOfStock

Part Number : SDG750

Availability: Sold out

Detailed Description
Specifications

The ifm electronic compressed air meter is precisely engineered for industrial applications, designed to monitor compressed air with exceptional accuracy. It features a measuring range of 0.6 to 143.9 m/s and supports a variety of process connections, making it versatile for many setups. Its robust design, including stainless steel materials, ensures durable performance, while IP65 and IP67 protection ratings provide resilience against environmental factors. The meter is equipped with advanced electrical specifications, including reverse polarity protection and a maximum current consumption of less than 80 mA. With clear displays and a user-friendly interface, the device simplifies monitoring of compressed air parameters effectively.

Integrated display with a resolution of 128 x 128 pixels for clear readouts
Configurable output signals, including PNP/NPN and pulse signals for versatile applications
Measured and display ranges support detailed monitoring of various parameters
Pressure monitoring capabilities with adjustable set and reset points for enhanced accuracy

Brand	ifm
Media Monitored	Air
Device Type	Air Meter
Minimum Flow Rate	0.6 m/s
Maximum Flow Rate	143.9 m/s
Supply Voltage	30 V dc
Series	SDG
