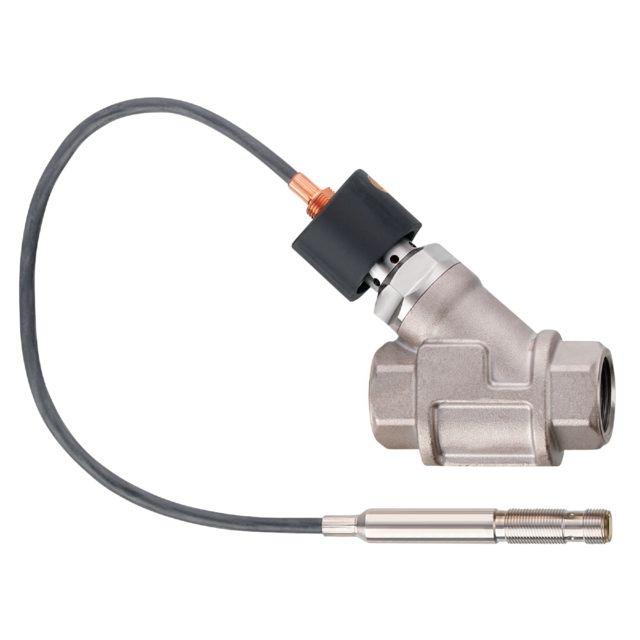

ifm SBT634, SBT Series Flow Transmitter Flow Sensor for Liquid, 0.3 l/min Min, 50 L/min Max

Name: ifm SBT634, SBT Series Flow Transmitter Flow Sensor for Liquid, 0.3 l/min Min, 50 L/min Max
Brand: ifm
SKU: SBT634
Availability: OutOfStock

Part Number : SBT634

Availability: in stock

Detailed Description
Specifications
Downloads

The ifm electronic Flow Transmitter with Integrated Backflow Prevention is designed specifically for measuring liquids such as water. It operates effectively within a medium temperature range of 10 to 180°C and supports a static pressure rating of up to 30 bar. The device requires an operating voltage of 24 V DC with a tolerance of -15% to +10%, and it consumes less than 35 mA of current. It is protected to Class III standards and includes reverse polarity protection. The transmitter provides an analogue current output in the range of 4 to 20 mA, suitable for loads up to 500 Ohm. It features both short circuit and overload protection, ensuring reliable operation in demanding conditions.

Precise detection of flow in pipes
Suitable for water and liquid media
Reliable backflow prevention with very fast response time
Robust housing with very high pressure rating

Brand	ifm
Media Monitored	Liquid
Device Type	Flow Transmitter
Minimum Flow Rate	0.3 l/min
Maximum Flow Rate	50 L/min
Supply Voltage	24 V
Series	SBT
