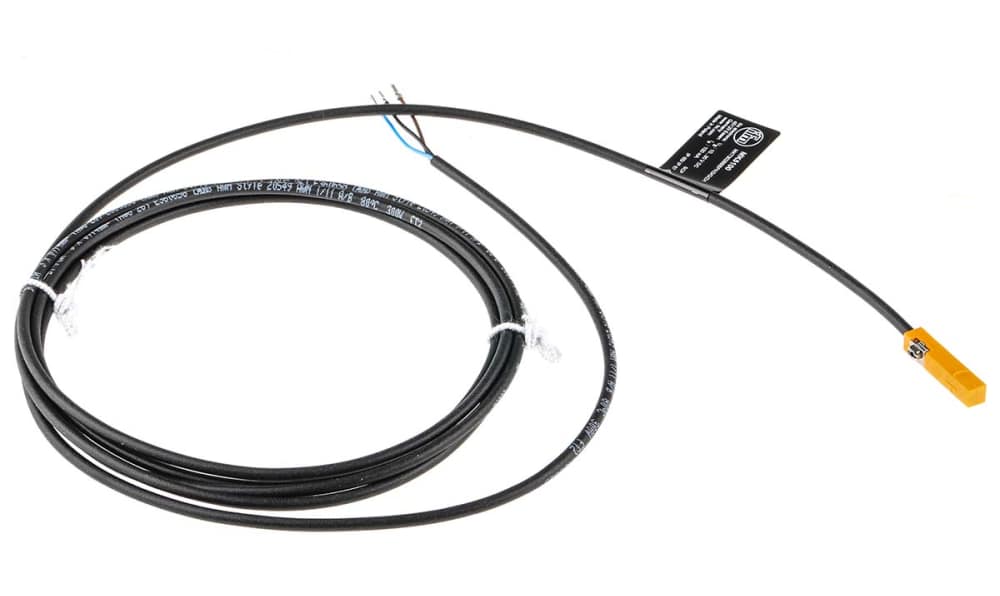

ifm MK5100, Magnetic Pickup

Name: ifm MK5100, Magnetic Pickup
Brand: ifm
SKU: MK5100
Availability: OutOfStock

Part Number : MK5100

Availability: Sold out

Detailed Description
Specifications

Magnetic Proximity Switch for Pneumatic Cylinders

Sensor for pneumatic cylinders
Records the ring magnets in the cylinder pistons
Precise recording of position by means of accurate switching points
Output: N/O
Output current max. 100 mA
Response threshold 2.1 mT
Traverse speed > 10 m/s
Polarity reversal protection
LED status display
Connection lead with plug connection
Plastic housing for T-slot cylinders
Flush-mountable
Quick and easy assembly

Approvals

CE, UL

Supplied with

Memory rubber, cable clip

Brand	ifm
Supply Voltage	10 → 30 V dc
IP Rating	IP65, IP67
Overall Height	25.3mm
Overall Width	5mm
Overall Depth	6.5mm
Minimum Operating Temperature	-25°C
Mounting Type	Flush Mount
Maximum Operating Temperature	+85°C
Switching Frequency	>10 kHz
