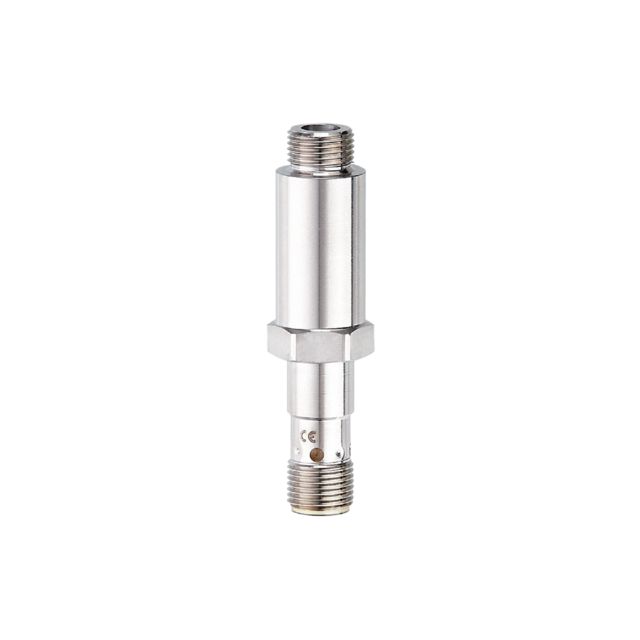

ifm M9H210, Inductive Threaded Barrel Magnetic Proximity Sensor, M12, 2 mm Detection, PNP/NPN NO, 10 → 36 V dc

Name: ifm M9H210, Inductive Threaded Barrel Magnetic Proximity Sensor, M12, 2 mm Detection, PNP/NPN NO, 10 → 36 V dc
Brand: ifm
SKU: M9H210
Availability: OutOfStock

Part Number : M9H210

Availability: in stock

Detailed Description
Specifications
Downloads

The ifm electronic position sensor offers exceptional precision and reliability for demanding applications. Engineered to detect ferrous metals, it features a robust stainless steel housing and a high-grade gold-plated contact system. Its wide operating temperature range, overload and short-circuit protection, and flush mount ability make it ideal for various setups, including lubricant distribution systems. The integrated LED indicator provides quick status checks.

Pressure-resistant up to 350 bar
Designed for use in plunger detection
Compact and robust stainless steel housing
Spanner flat for easy mounting
High shock and vibration resistance for mobile applications

Brand	ifm
Thread Size	M12
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	2 mm
Digital Switching Output Type	PNP/NPN
Output Function	NO
Connection Type	M12
Supply Voltage	10 → 36 V dc
Length	68.5mm
IP Rating	IP65, IP67
Mounting Type	Flush
Switching Frequency	10 Hz
Switching Current	100 mA
Series	M9H
Shielding	Shielded
