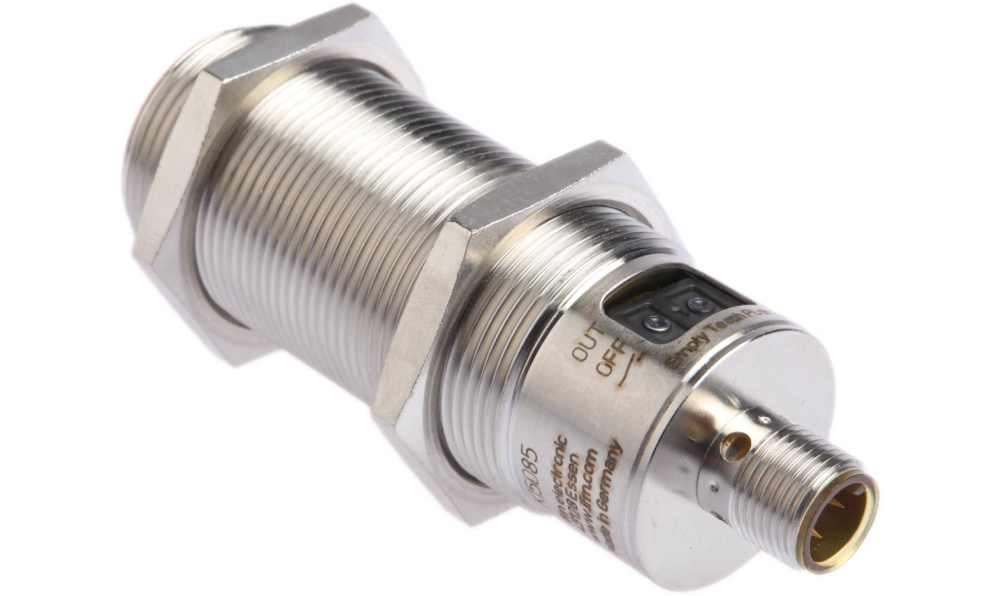

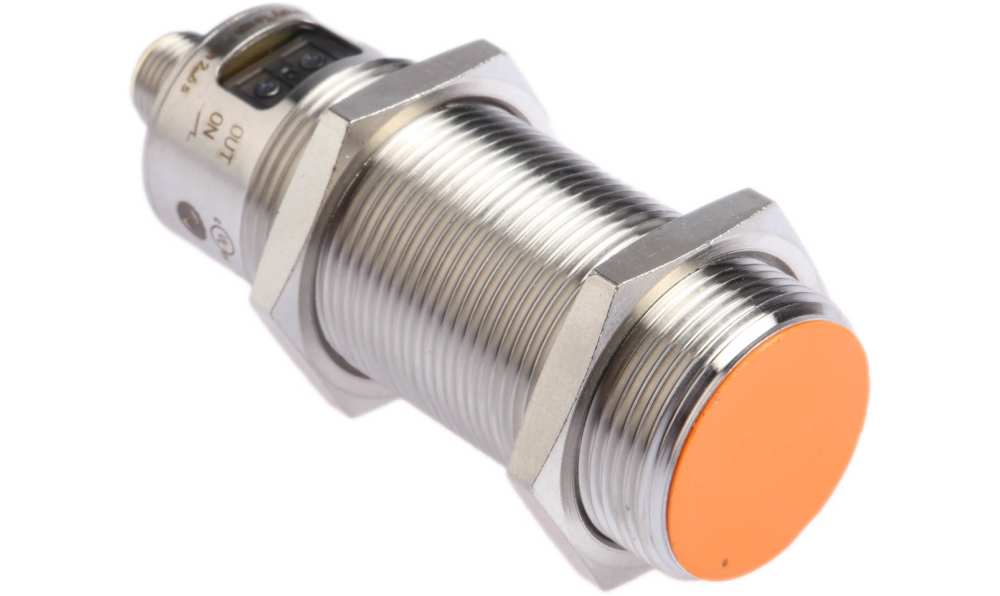

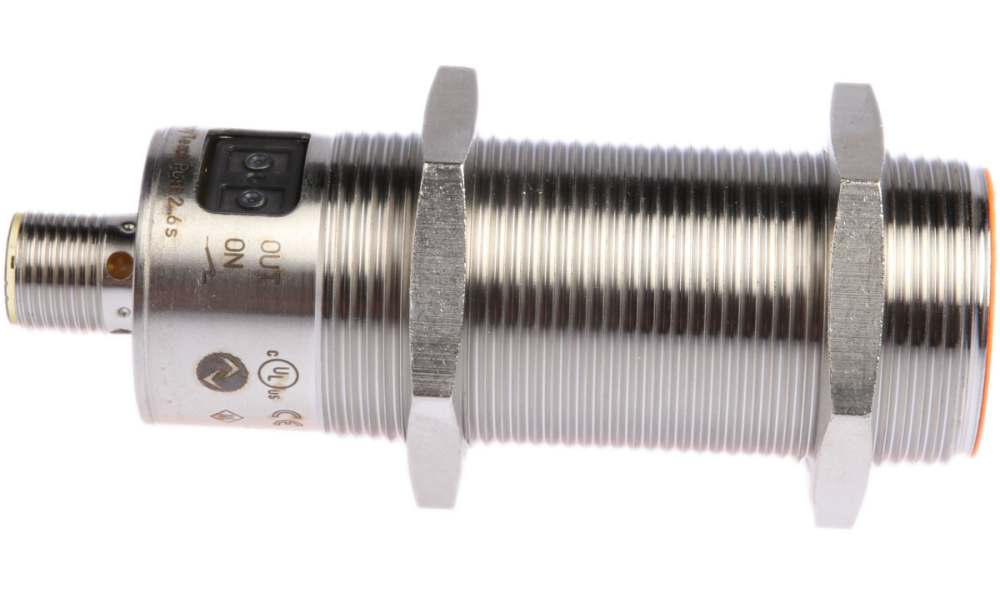

Name: ifm KI5085, Capacitive Threaded Barrel Proximity Sensor, M30, 8 mm Detection, PNP NO/NC, 10 → 36 V dc
Brand: ifm
SKU: KI5085
Availability: OutOfStock

ifm KI5085, Capacitive Threaded Barrel Proximity Sensor, M30, 8 mm Detection, PNP NO/NC, 10 → 36 V dc

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm KI5085, Capacitive Threaded Barrel Proximity Sensor, M30, 8 mm Detection, PNP NO/NC, 10 → 36 V dc

Part Number : KI5085

Availability: Sold out

Detailed Description
Specifications
Downloads

The IFM Electronics capacitive proximity sensor has 4-Pin, M12 connector and housing material of stainless steel.

Accessories: 2 lock nuts

Brand	ifm
Thread Size	M30
Sensor Technology	Capacitive
Detection Range	8 mm
Body Style	Threaded Barrel
Output Function	NO/NC
Digital Switching Output Type	PNP
Connection Type	M12
Supply Voltage	10 → 36 V dc
IP Rating	IP65, IP67
Length	90mm
Mounting Type	Flush
Housing Material	Stainless Steel
Maximum DC Voltage	36V
Minimum Operating Temperature	-25°C
Short Circuit Overload Protection	Yes
Switching Frequency	10 Hz
Maximum Operating Temperature	+80°C
Communication Protocol	IO-LINK
Switching Current	100 mA
Maximum Switching Frequency	10Hz
