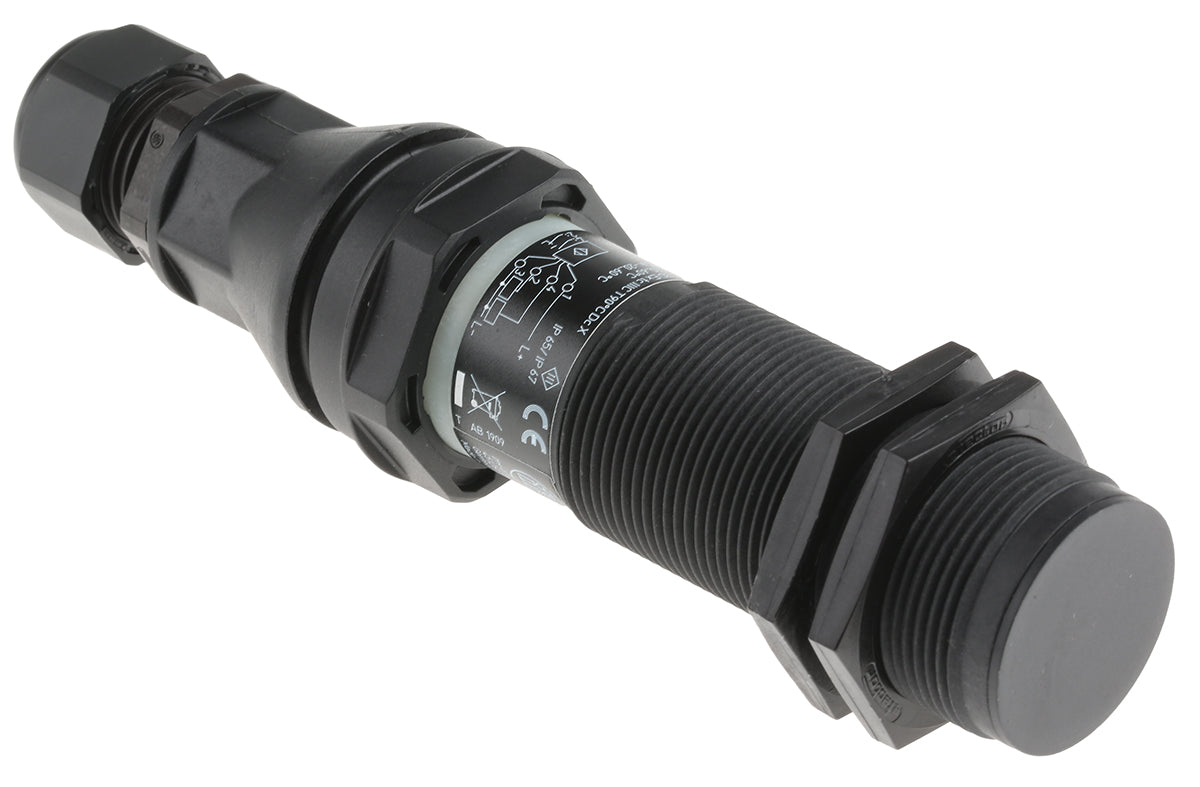

ifm KI503A, Capacitive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, PNP NO+NC, 10 → 30 V dc

Name: ifm KI503A, Capacitive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, PNP NO+NC, 10 → 30 V dc
Brand: ifm
SKU: KI503A
Availability: OutOfStock

Part Number : KI503A

Availability: Sold out

Detailed Description
Specifications
Downloads

Capacitive Proximity Switch, Dust Ex Area

Cable entry, straight or angled mount
Sn up to 15 mm, adjustable using potentiometer
Plastic M30 thread

Application

Developed for the high demands of the 3D device category (zone 22, non-conducting dust)

Certificate No.

II 3D IP65 T80°C X

Brand	ifm
Thread Size	M30
Sensor Technology	Capacitive
Body Style	Threaded Barrel
Detection Range	15 mm
Output Function	NO+NC
Digital Switching Output Type	PNP
Connection Type	Screw Terminal
Supply Voltage	10 → 30 V dc
Length	150mm
IP Rating	IP65, IP67
Mounting Type	Non-Flush
Housing Material	Polyamide
Maximum DC Voltage	30V
Minimum Operating Temperature	-20°C
Switching Current	200 mA
Switching Frequency	10 Hz
Reverse Polarity Protection	Yes
Maximum Switching Frequency	10Hz
Shielding	Unshielded
Short Circuit Overload Protection	Yes
