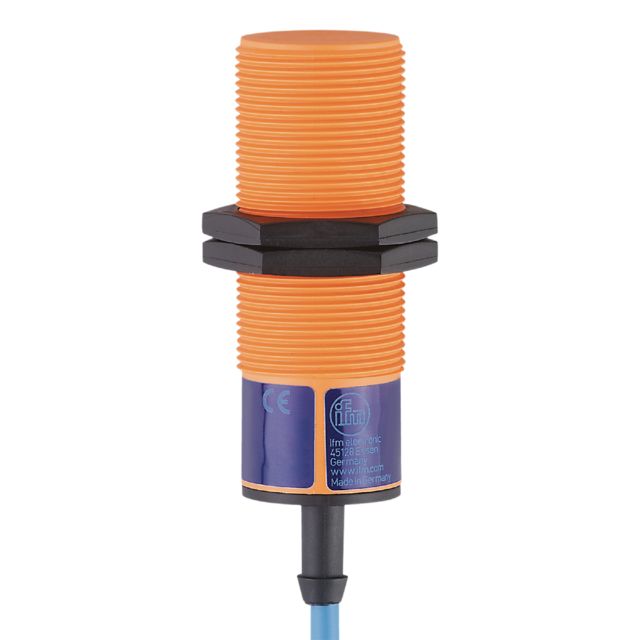

ifm KI5031, Capacitive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, NAMUR NC, 7.5 → 15 V dc

Name: ifm KI5031, Capacitive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, NAMUR NC, 7.5 → 15 V dc
Brand: ifm
SKU: KI5031
Availability: OutOfStock

Part Number : KI5031

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic NAMUR capacitive sensor offers robust design and precise functionality for industrial applications. Featuring a threaded housing for easy installation, it operates effectively from -20 to 60°C, ensuring reliability in diverse environments. The sensor's normally closed output and 15 mm sensing range provide accurate detection, while its short-circuit proof technology enhances safety. With adjustable settings and adherence to stringent safety standards, this sensor is well-suited for use in hazardous areas and meets intrinsic safety requirements.

For applications in hazardous areas
Easy setting of the sensing range via potentiometer
Clearly visible indication of the switching status by LED
For connection to intrinsically safe circuits

Brand	ifm
Thread Size	M30
Sensor Technology	Capacitive
Detection Range	15 mm
Body Style	Threaded Barrel
Output Function	NC
Digital Switching Output Type	NAMUR
Connection Type	Pre-Cabled
Cable Length	6m
Supply Voltage	7.5 → 15 V dc
Length	81mm
IP Rating	IP65
Mounting Type	Non-Flush
Switching Frequency	40 Hz
Shielding	Unshielded
Series	KI
