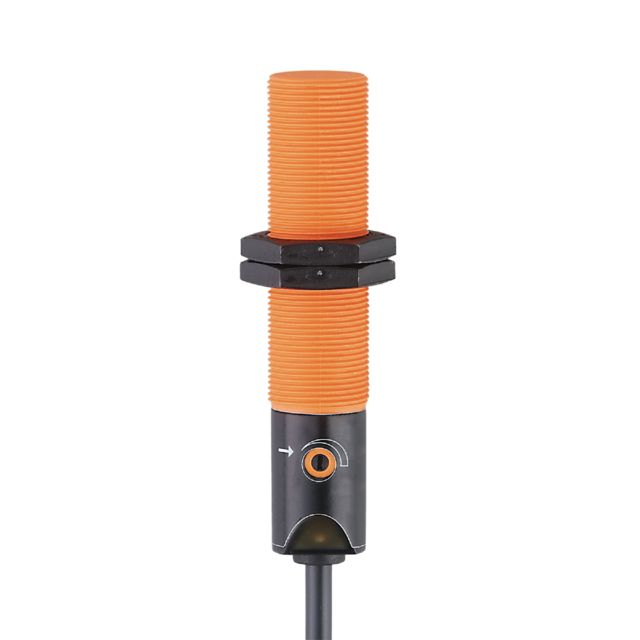

ifm KG5044, Capacitive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP NC, 10 → 36 V dc

Name: ifm KG5044, Capacitive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP NC, 10 → 36 V dc
Brand: ifm
SKU: KG5044
Availability: OutOfStock

Part Number : KG5044

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic capacitive sensor delivers precise detection for non-metallic materials with a robust threaded housing for versatile installation. It supports various operating voltages and is built to endure harsh conditions, making it ideal for demanding industrial environments. With high durability and performance, this sensor enhances operational efficiency and safety across diverse applications.

Easy setting of the sensing range via potentiometer
High noise immunity
Clearly visible indication of the switching status
With PVC cable

Brand	ifm
Thread Size	M18
Sensor Technology	Capacitive
Body Style	Threaded Barrel
Detection Range	8 mm
Output Function	NC
Digital Switching Output Type	PNP
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 36 V dc
IP Rating	IP67
Length	84mm
Mounting Type	Non-Flush
Shielding	Unshielded
Series	KG
Switching Frequency	50 Hz
Switching Current	250 mA
