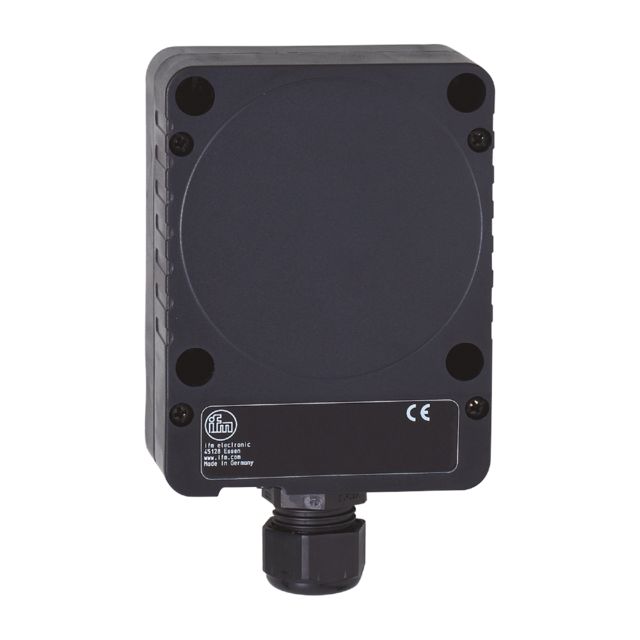

Name: ifm KD001A, Capacitive Rectangular Proximity Sensor, 60 mm Detection, 2-Wire NO/NC, 20 → 250 V ac/dc, 20
Brand: ifm
SKU: KD001A
Availability: OutOfStock

ifm KD001A, Capacitive Rectangular Proximity Sensor, 60 mm Detection, 2-Wire NO/NC, 20 → 250 V ac/dc, 20

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm KD001A, Capacitive Rectangular Proximity Sensor, 60 mm Detection, 2-Wire NO/NC, 20 → 250 V ac/dc, 20

Part Number : KD001A

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic capacitive sensor provides a reliable detection solution with its durable rectangular housing, making it suitable for various applications. It supports a wide operating voltage range of 20 to 250 AC/DC and offers flexible output functions. The sensor's IP65 rating ensures resilience against environmental factors, and its adjustable sensing range up to 60mm enhances versatility. Ideal for diverse automation tasks, it combines ease of use with robust performance.

With combined AC/DC output and two-wire technology
Long sensing range of 60 mm
Easy setting of the sensing range via potentiometer
For applications in hazardous areas
Robust housing for use in harsh industrial environments

Brand	ifm
Sensor Technology	Capacitive
Detection Range	60 mm
Body Style	Rectangular
Output Function	NO/NC
Digital Switching Output Type	2-Wire
Connection Type	Screw Terminal
Supply Voltage	20 → 250 V ac/dc, 20 → 250 V ac/dc
IP Rating	IP65
Length	105mm
Mounting Type	Non-Flush
Switching Current	130 mA
Shielding	Unshielded
Series	KD
Switching Frequency	4 Hz

ifm KD001A, Capacitive Rectangular Proximity Sensor, 60 mm Detection, 2-Wire NO/NC, 20 → 250 V ac/dc, 20
