ifm KD0012, Capacitive Rectangular Proximity Sensor, 60 mm Detection, 2-Wire NO, 20 → 250 V ac/dc, 20

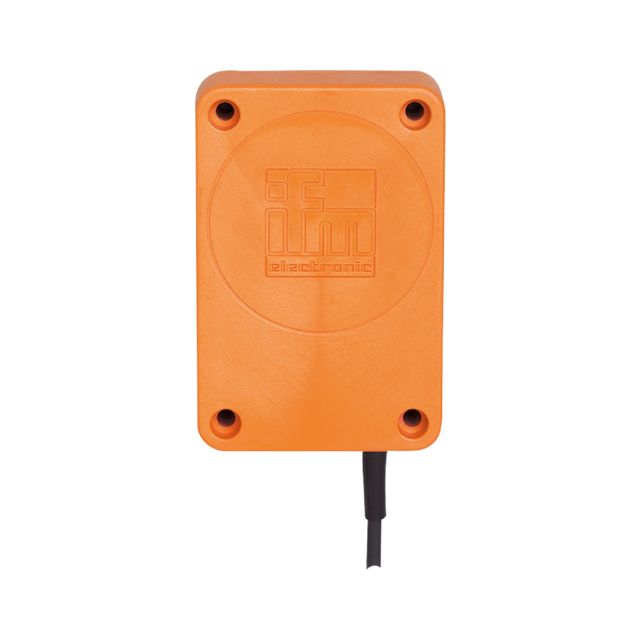

Name: ifm KD0012, Capacitive Rectangular Proximity Sensor, 60 mm Detection, 2-Wire NO, 20 → 250 V ac/dc, 20
Brand: ifm
SKU: KD0012
Availability: OutOfStock

Part Number : KD0012

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic capacitive sensor offers precise detection and reliable performance across diverse applications. Featuring a robust rectangular housing, it ensures durability and easy installation in challenging environments. The sensor supports both AC and DC applications and provides flexible sensing ranges. Its advanced design makes it ideal for industrial automation and safety systems.

Easy setting of the sensing range via potentiometer
High noise immunity
Robust housing for use in harsh industrial environments
With combined AC/DC output and two-wire technology
Long sensing range of 60 mm

Brand	ifm
Sensor Technology	Capacitive
Detection Range	60 mm
Body Style	Rectangular
Output Function	NO
Digital Switching Output Type	2-Wire
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	20 → 250 V ac/dc, 20 → 250 V ac/dc
Length	120mm
IP Rating	IP65
Mounting Type	Non-Flush
Switching Frequency	10 Hz
Shielding	Unshielded
Switching Current	200 mA
Series	KD
