ifm IS5087, Inductive Rectangular Proximity Sensor, 4 mm Detection, PNP NO, 10 → 30 V dc

Name: ifm IS5087, Inductive Rectangular Proximity Sensor, 4 mm Detection, PNP NO, 10 → 30 V dc
Brand: ifm
SKU: IS5087
Availability: OutOfStock

Part Number : IS5087

Availability: Sold out

Detailed Description
Specifications
Downloads

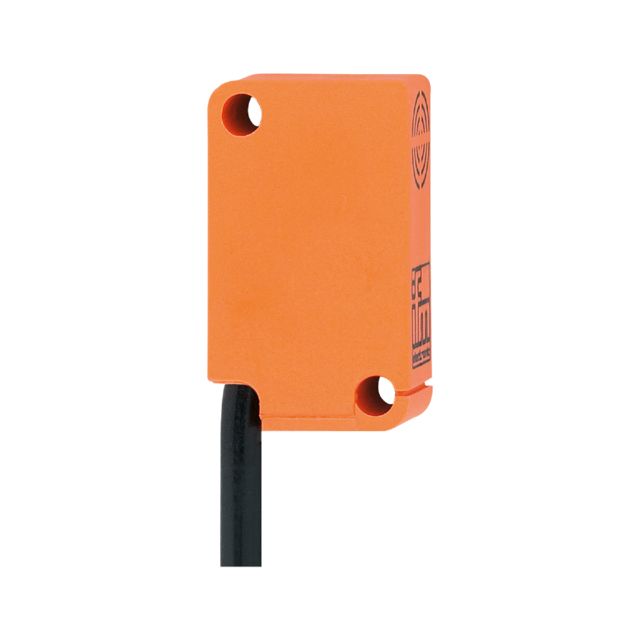

The ifm electronic inductive sensor is engineered for precision with a sensing range of up to 4 mm, making it ideal for industrial applications. Its compact rectangular housing and lightweight design ensure easy integration into tight spaces. Protected by an IP67 rating, this sensor is resilient against dust and water, and operates reliably within a wide temperature range of -25 to 70 °C. Enhanced with short-circuit and overload protection, it guarantees durability and efficiency, meeting stringent EMC standards for dependable performance in challenging conditions.

Particularly space-saving rectangular housing
For use where space is restricted
Very high switching frequency
Wide operating temperature range
Clearly visible indication of the switching status

Brand	ifm
Sensor Technology	Inductive
Detection Range	4 mm
Body Style	Rectangular
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	Pre-Cabled
Cable Length	150mm
Supply Voltage	10 → 30 V dc
Length	28mm
IP Rating	IP67
Mounting Type	Non-Flush
Switching Current	200 mA
Shielding	Unshielded
Switching Frequency	2 kHz
Series	IS

ifm IS5087, Inductive Rectangular Proximity Sensor, 4 mm Detection, PNP NO, 10 → 30 V dc
