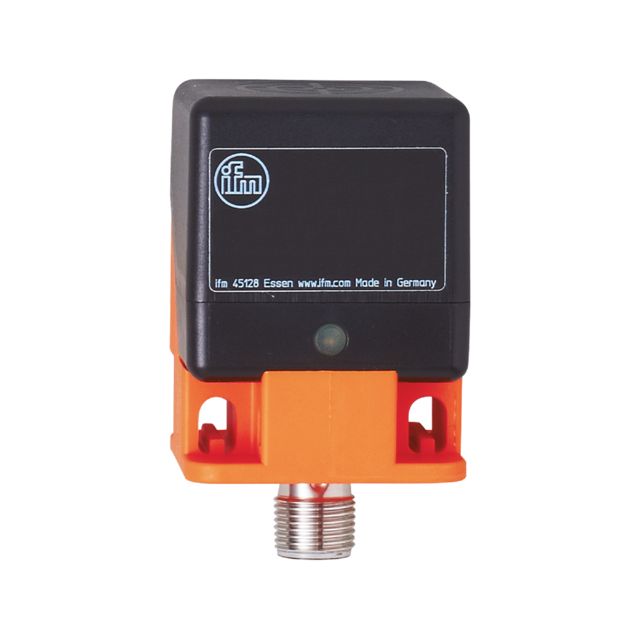

Name: ifm IM512A, Inductive Rectangular Proximity Sensor, 20 mm Detection, PNP NO+NC, 10 → 30 V dc
Brand: ifm
SKU: IM512A
Availability: OutOfStock

ifm IM512A, Inductive Rectangular Proximity Sensor, 20 mm Detection, PNP NO+NC, 10 → 30 V dc

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm IM512A, Inductive Rectangular Proximity Sensor, 20 mm Detection, PNP NO+NC, 10 → 30 V dc

Part Number : IM512A

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic Inductive Sensor offers a reliable solution for detecting metallic objects without direct contact. Designed with a sturdy rectangular housing, the sensor ensures durability in a variety of environments. With a sensing range of up to 20 mm, it provides high precision and can withstand challenging conditions, thanks to its impressive protection ratings of IP65 and IP67. The device is equipped with gold plated contacts for enhanced conductivity, ensuring optimal performance over time. Its compatibility with a wide range of applications makes this sensor a versatile choice for various industrial sectors.

For applications in hazardous areas
Long sensing range for use in conveying
Robust housing for use in harsh industrial environments
Five positions of the sensing face selectable
Complementary output function NO/NC

Brand	ifm
Sensor Technology	Inductive
Body Style	Rectangular
Detection Range	20 mm
Digital Switching Output Type	PNP
Output Function	NO+NC
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP65, IP67
Length	54mm
Mounting Type	Flush
Switching Frequency	100 Hz
Switching Current	200 mA
Series	IM
Shielding	Shielded
