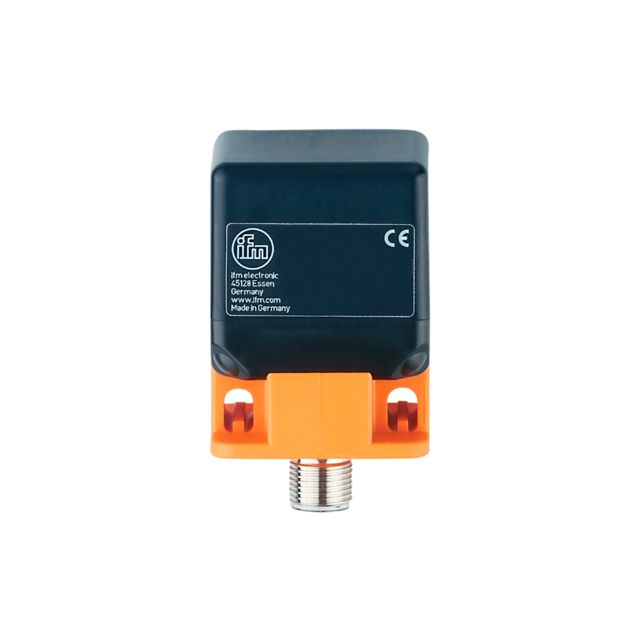

ifm IM5129, Inductive Rectangular Proximity Sensor, 40 mm Detection, PNP NO, 10 → 36 V dc

Name: ifm IM5129, Inductive Rectangular Proximity Sensor, 40 mm Detection, PNP NO, 10 → 36 V dc
Brand: ifm
SKU: IM5129
Availability: OutOfStock

Part Number : IM5129

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic Inductive Sensor is designed for precision and reliability in demanding industrial applications. With its robust construction and advanced technology, it ensures accurate detection of metallic objects within its sensing range. The sensor features a rectangular housing that is not only compact but also resistant to various environmental conditions, including exposure to magnetic fields and spatter. Engineered for flexibility, it offers multiple position configurations for optimal performance across different settings.

Magnetic-field immune for welding applications
Resistant to weld slag thanks to non-stick coating
Five positions of the sensing face selectable
Long sensing range for use in conveying
Correction factor 1 with constant sensing range on all metals

Brand	ifm
Sensor Technology	Inductive
Body Style	Rectangular
Detection Range	40 mm
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	M12
Supply Voltage	10 → 36 V dc
IP Rating	IP67
Length	54mm
Mounting Type	Non-Flush
Shielding	Unshielded
Switching Current	200 mA
Series	IM
Switching Frequency	200 Hz
