ifm II5936, Inductive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, PNP NO+NC, 10 → 36 V dc

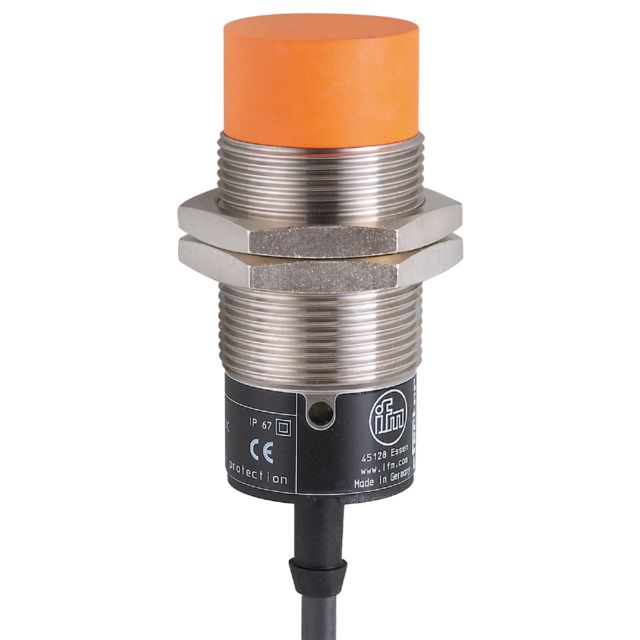

Name: ifm II5936, Inductive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, PNP NO+NC, 10 → 36 V dc
Brand: ifm
SKU: II5936
Availability: OutOfStock

Part Number : II5936

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic Inductive high temperature sensor is engineered for optimal performance in demanding industrial environments. With a robust threaded design and an operational temperature range capable of withstanding up to 130°C, this sensor delivers precise detection in various applications. It utilises advanced PNP electrical design for reliable complementary output, ensuring consistent functionality even in challenging conditions. Designed with user safety in mind, this sensor incorporates short circuit and overload protection, making it a dependable choice for industrial automation systems.

For use in temperatures up to 130 °C
For applications in the steel and glass industries
Sensor and evaluation unit in one housing
Robust stainless steel housing for use in harsh industrial environments
Long silicone cable terminals can be outside the critical area

Brand	ifm
Thread Size	M30
Sensor Technology	Inductive
Detection Range	15 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NO+NC
Cable Length	6m
Connection Type	Pre-Cabled
Supply Voltage	10 → 36 V dc
Length	67mm
IP Rating	IP67
Mounting Type	Non-Flush
Switching Current	70 mA
Series	II
Switching Frequency	250 Hz
Shielding	Unshielded
