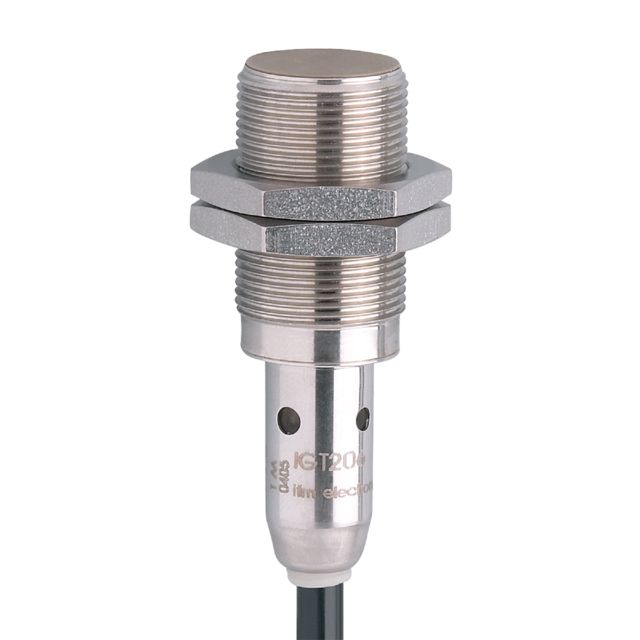

Name: ifm IGT206, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP NO, 10 → 36 V dc
Brand: ifm
SKU: IGT206
Availability: OutOfStock

ifm IGT206, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP NO, 10 → 36 V dc

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm IGT206, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP NO, 10 → 36 V dc

Part Number : IGT206

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic inductive sensor is precisely designed for reliable performance in various applications. It showcases cutting-edge technology ensuring enhanced sensing capabilities, particularly in regular cleaning processes. The robust M18 housing and professional-grade construction make it an ideal choice for environments where durability and accuracy are paramount. With an impressive sensing range of up to 8mm and a variety of protection features, this sensor is perfectly suited for both industrial and commercial settings. Its compact dimensions and threadable design allow for easy installation while ensuring optimal functionality.

Wide operating temperature range
Temperature shock resistant even in case of frequent temperature fluctuations
Robust stainless steel housing for use in the food and beverage industry
Resistant to high-pressure cleaning with aggressive cleaning agents
High protection rating for the requirements of harsh industrial environments

Brand	ifm
Thread Size	M18
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	8 mm
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	Pre-Cabled
Cable Length	6m
Supply Voltage	10 → 36 V dc
IP Rating	IP68, IP69K
Length	57mm
Mounting Type	Flush
Switching Current	100 mA
Series	IGT
Switching Frequency	600 Hz
Shielding	Shielded
