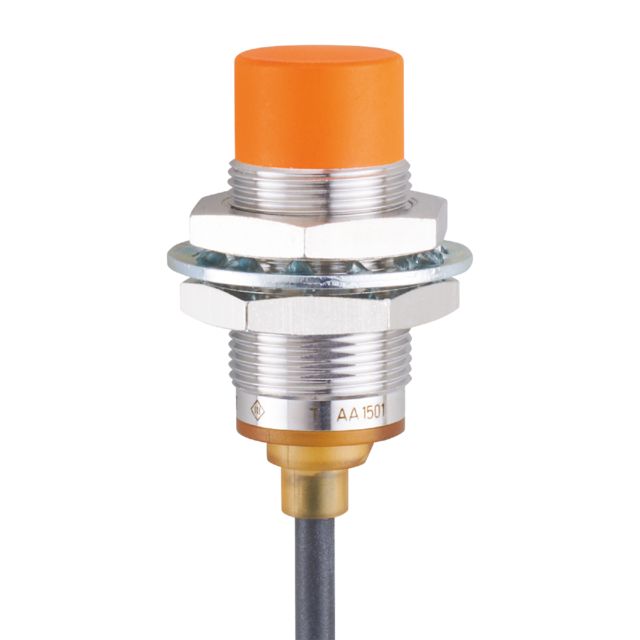

ifm IGS704, Inductive Threaded Barrel Proximity Sensor, M18, 12 mm Detection, PNP NC, 10 → 30 V dc

Name: ifm IGS704, Inductive Threaded Barrel Proximity Sensor, M18, 12 mm Detection, PNP NC, 10 → 30 V dc
Brand: ifm
SKU: IGS704
Availability: OutOfStock

Part Number : IGS704

Availability: in stock

Detailed Description
Specifications
Downloads

The ifm electronic Inductive Sensor is designed to meet the demanding requirements of industrial applications and factory automation. This robust sensor offers an impressive sensing range of 12mm, coupled with a threaded housing that ensures easy installation in various environments. Notably, it features increased sensing capabilities and reliable performance under extreme conditions, thanks to its extensive protection rating. The sensitivity and accuracy of this sensor are enhanced with advanced circuitry, allowing for precise detection even in challenging settings.

Suitable for industrial, mobile, cooling and lubricating applications
High protection rating for the requirements of harsh industrial environments
Flexible use thanks to large operating temperature range
Safe detection due to large sensing range and low sensor tolerances
Reduced storage due to wide range of applications

Brand	ifm
Thread Size	M18
Sensor Technology	Inductive
Detection Range	12 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NC
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 30 V dc
Length	40mm
IP Rating	IP65, IP66, IP67, IP68, IP69K
Mounting Type	Non-Flush
Switching Current	100 mA
Switching Frequency	300 Hz
Series	IGS
Shielding	Unshielded
