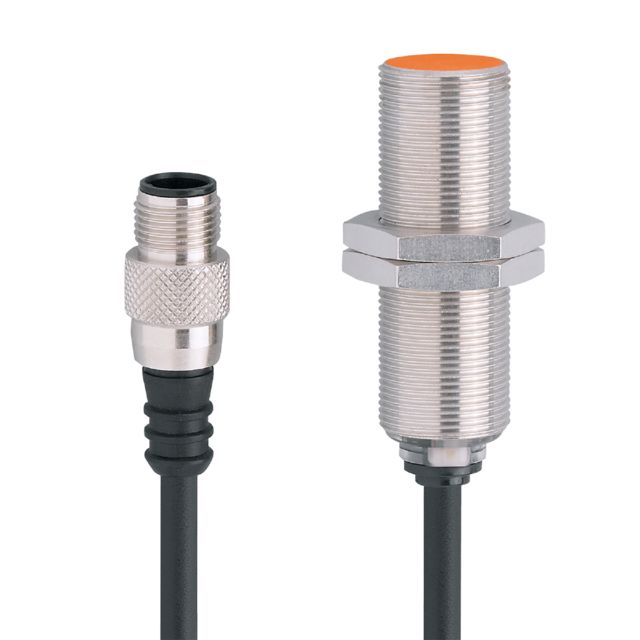

ifm IG9984, Inductive Threaded Barrel Proximity Sensor, M18, 5 mm Detection, PNP NO, 10 → 55 V dc

Name: ifm IG9984, Inductive Threaded Barrel Proximity Sensor, M18, 5 mm Detection, PNP NO, 10 → 55 V dc
Brand: ifm
SKU: IG9984
Availability: OutOfStock

Part Number : IG9984

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic inductive sensor delivers precision and reliability in various industrial applications. Designed with a threaded housing and impressive sensing capabilities, it provides consistent performance even in challenging environments. The sensor operates effectively within a wide range of temperatures, ensuring it remains functional from -25°C to 80°C. Its durable construction features nickel-plated brass and PBT materials, contributing to its longevity and resistance to wear. The intuitive design incorporates a bright yellow LED for clear indication of the switching status, making it easy to monitor operation. Coupled with a robust mounting option for flush installation, this product exemplifies exceptional engineering tailored to the needs of modern manufacturing.

Output function normally open or normally closed programmable
Two-wire technology
Robust metal housing for use in harsh industrial environments
Large operating temperature and operating voltage range
Very high switching frequency

Brand	ifm
Thread Size	M18
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	5 mm
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	M12
Supply Voltage	10 → 55 V dc
IP Rating	IP67
Length	58mm
Mounting Type	Flush
Switching Current	400 mA
Series	IG9
Switching Frequency	700 Hz
Shielding	Shielded
