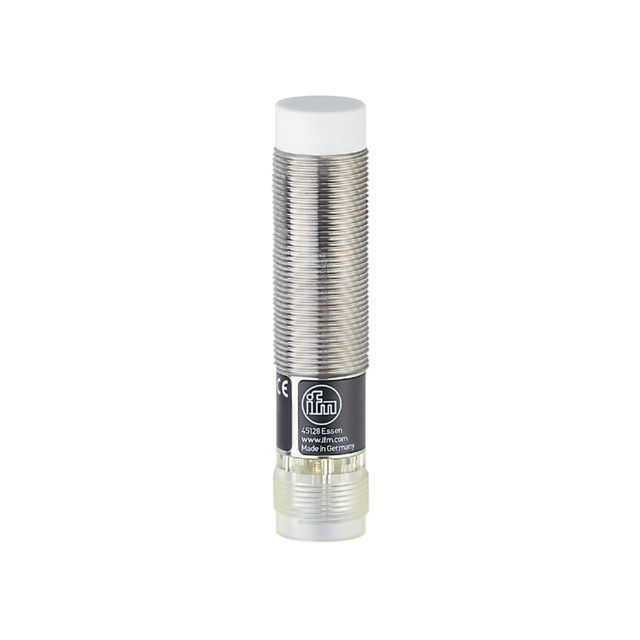

ifm IG0303, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, 2-Wire NO, 20 → 250 V ac/dc, 20

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm IG0303, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, 2-Wire NO, 20 → 250 V ac/dc, 20

Name: ifm IG0303, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, 2-Wire NO, 20 → 250 V ac/dc, 20
Brand: ifm
SKU: IG0303
Availability: OutOfStock

Part Number : IG0303

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic inductive sensor is designed for reliability and precision in industrial applications. This threaded type sensor excels in detecting metallic objects with a sensing range of up to 8 mm, making it suitable for various automation tasks. Built to withstand challenging environments, it offers IP67 protection, ensuring robustness against dust and water ingress. The sensor operates seamlessly over a wide voltage range, providing versatility in different setups. With its compact design, it is easy to integrate into existing systems while providing accurate performance metrics necessary for effective process control. This sensor is not just efficient

it is also equipped with features that enhance its operational longevity and reduce maintenance downtime.

With combined AC/DC output stage
Two-wire technology
Wide operating temperature range
Robust metal housing for use in harsh industrial environments
With robust M18 connector

Brand	ifm
Thread Size	M18
Sensor Technology	Inductive
Detection Range	8 mm
Body Style	Threaded Barrel
Digital Switching Output Type	2-Wire
Output Function	NO
Connection Type	M18
Supply Voltage	20 → 250 V ac/dc, 20 → 250 V ac/dc
Length	81mm
IP Rating	IP67
Mounting Type	Non-Flush
Series	IG0
Switching Current	100 mA
Shielding	Unshielded
Switching Frequency	25 Hz
