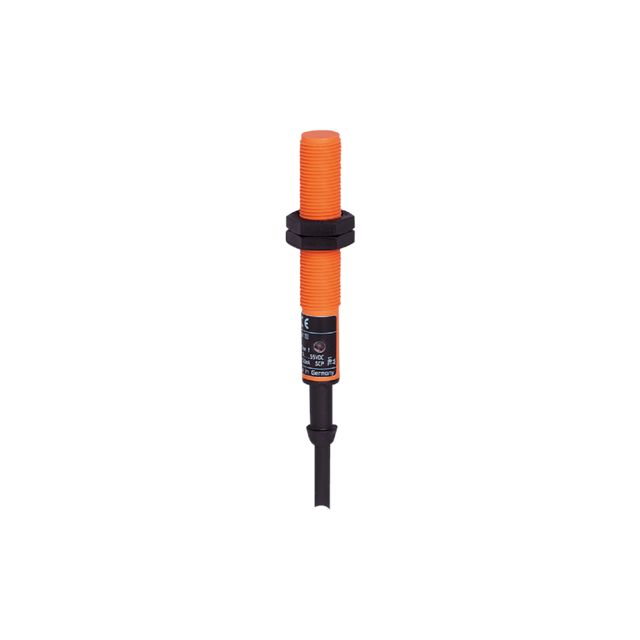

Name: ifm IF5349, Inductive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, PNP NC, 10 → 36 V dc
Brand: ifm
SKU: IF5349
Availability: OutOfStock

ifm IF5349, Inductive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, PNP NC, 10 → 36 V dc

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm IF5349, Inductive Threaded Barrel Proximity Sensor, M12, 4 mm Detection, PNP NC, 10 → 36 V dc

Part Number : IF5349

Availability: Sold out

Detailed Description
Specifications

The ifm electronic inductive sensor is a cutting-edge solution tailored for precision detection in industrial applications. Featuring a robust design and a versatile operating range, this sensor excels in its ability to provide reliable performance even under challenging conditions. Its threaded housing type ensures easy installation, while the durable materials and IP67 protection class contribute to its longevity and robustness in various environments. With a sensing range of 4 mm and exceptional accuracy, this sensor is ideal for detecting metallic objects with minimal drift, making it a valuable asset for any automated system.

High protection rating for the requirements of harsh industrial environments
Wide operating temperature range
Very high switching frequency
For a precise position detection on machines

Brand	ifm
Thread Size	M12
Sensor Technology	Inductive
Detection Range	4 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NC
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	10 → 36 V dc
Length	71mm
IP Rating	IP67
Mounting Type	Non-Flush
Switching Current	250 mA
Shielding	Unshielded
Series	IF5
Switching Frequency	400 Hz
