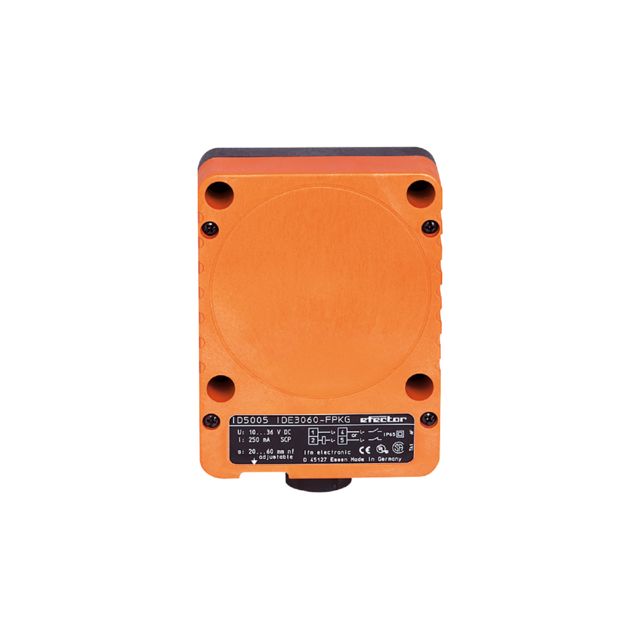

ifm ID5005, Inductive Rectangular Proximity Sensor, 60 mm Detection, PNP NO/NC, 10 → 36 V dc

Name: ifm ID5005, Inductive Rectangular Proximity Sensor, 60 mm Detection, PNP NO/NC, 10 → 36 V dc
Brand: ifm
SKU: ID5005
Availability: OutOfStock

Part Number : ID5005

Availability: Sold out

Detailed Description
Specifications
Downloads

The ifm electronic inductive sensor presents a cutting-edge solution for a variety of industrial applications. Designed with precision in mind, this sensor excels in detecting metallic objects without the need for direct contact. Its robust housing ensures durability even in harsh environments, while the adjustable sensing range provides flexibility for differing operational needs. With an impressive operating voltage range and advanced protection features, this inductive sensor promises reliability and efficiency. The user-friendly design simplifies installation, making it an ideal choice for both new and retrofitting projects.

Very long sensing range
Large active sensor face
Easy setting of the sensing range via potentiometer
Output function normally open or normally closed programmable
Robust housing for use in harsh industrial environments

Brand	ifm
Sensor Technology	Inductive
Body Style	Rectangular
Detection Range	60 mm
Digital Switching Output Type	PNP
Output Function	NO/NC
Connection Type	Screw Terminal
Supply Voltage	10 → 36 V dc
Length	105mm
IP Rating	IP65
Mounting Type	Non-Flush
Series	ID5
Switching Frequency	100 Hz
Shielding	Unshielded
Switching Current	250 mA
