ifm EVF565, , EVF Series M12 Socket for Use with Sensor, CE Certified Standard

Part Number : EVF565

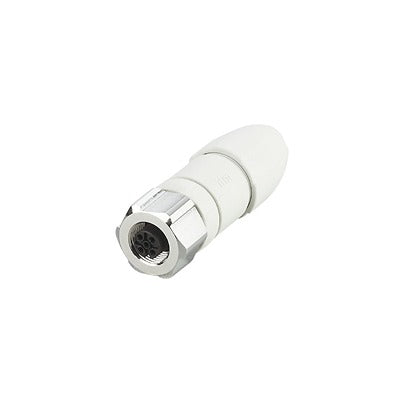

The 4-pole wirable EVF565 M12 connector from ifm electronic is a straight socket with 3-point strain relief and a separate highly-elastic seal. Thanks to the proven screw terminals (0.25-1 mm²) and the stainless steel contour nut, the EVF565 M12 connector can be easily installed. The high protection rating of IP65/IP67/IP68/IP69K enables the use of the EVF565 M12 connector in hygienic and wet areas of the food industry.

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

The ifm electronic Wirable Socket is designed for hygienic and wet areas in the food industry and is free from silicone. It operates at voltages below 250 V AC and 300 V DC with a protection class II rating. The socket supports a maximum current load of 4 A at 40°C. It is suitable for ambient temperatures from -25°C to 100°C. Storage conditions include temperatures from -25°C to 55°C and humidity levels between 10% and 100%. It complies with the storage climatic conditions defined by class 1K22 / DIN 60721-3-1.

Free from silicone
Gold-plated contacts
