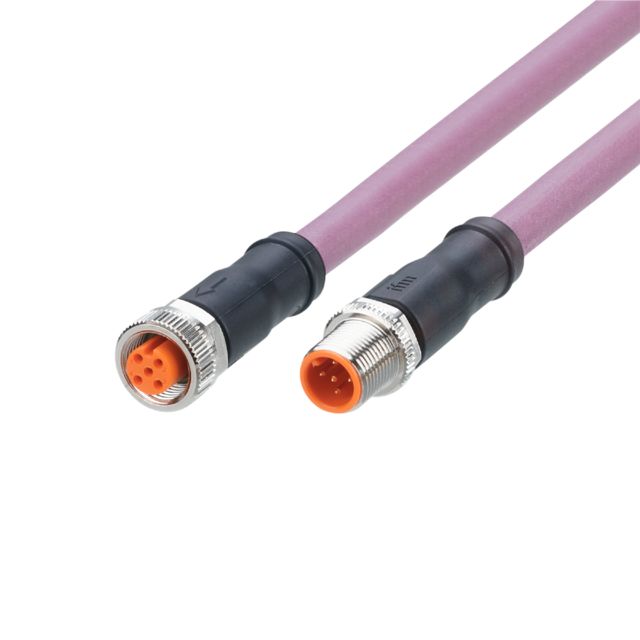

Name: ifm EVCA58, Straight Male 5 way M12 to Straight Female 5 way M12 Communication Cable, 7.5m
Brand: ifm
SKU: EVCA58
Availability: OutOfStock

ifm EVCA58, Straight Male 5 way M12 to Straight Female 5 way M12 Communication Cable, 7.5m

Client Protection

Dedicated Support

Client Protection

Dedicated Support

ifm EVCA58, Straight Male 5 way M12 to Straight Female 5 way M12 Communication Cable, 7.5m

Part Number : EVCA58

Availability: Sold out

Detailed Description
Specifications

The ifm electronic connection cable is engineered to deliver high performance and reliability in demanding environments. Designed with halogen-free materials, the cable ensures safety and longevity, making it ideal for applications like CAN bus systems. The sturdy TPU moulded body and brass, nickel-plated connectors provide exceptional durability, while the gold-plated contacts enhance connectivity. With an impressive operational temperature range and robust protection ratings of IP67, IP68, and IP69K, this cable is suited for various industrial applications. Its drag chain suitability adds to its versatility, allowing it to endure extensive movement without compromising performance. Whether for static installations or dynamic environments, this connection cable stands out for its resilience and quality.

Resistant to oils and coolants
Permanent and reliable sealing even when mounted without tools
Large cable cross-section for reducing the voltage drop
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mechanical end stop to p

Brand	ifm
Series	EVC
Number of Cores	2
Cross Sectional Area	0.75 mm²
Sheath Material	Polyurethane PUR
Sheath Colour	Purple
Length	7.5m
Connector 1	M12
Connector 1 Gender	Male
Connector 1 Number of Contacts	5
Connector 1 Orientation	Straight
Connector 2 Number of Contacts	5
Connector 2 Gender	Female
Connector 2	M12
Connector 2 Orientation	Straight
