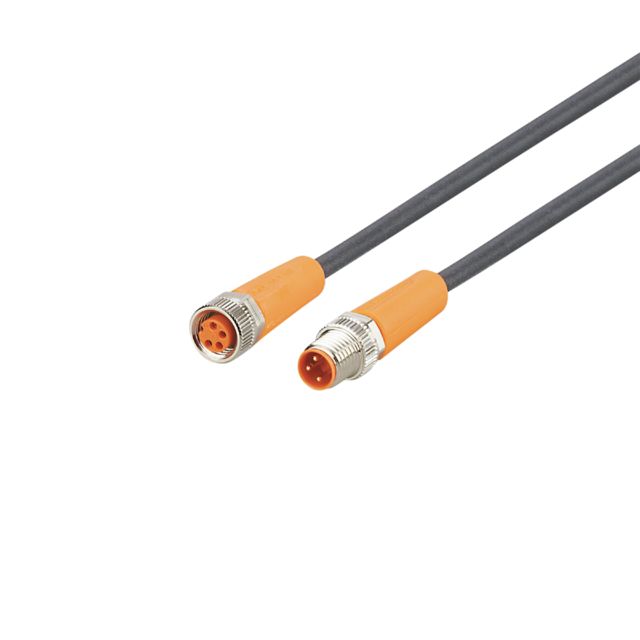

ifm EVC270, Straight Male 1 way M8 to Straight Female 1 way M8 Sensor Actuator Cable, 300mm

Name: ifm EVC270, Straight Male 1 way M8 to Straight Female 1 way M8 Sensor Actuator Cable, 300mm
Brand: ifm
SKU: EVC270
Availability: OutOfStock

Part Number : EVC270

Availability: Sold out

Detailed Description
Specifications

The ifm electronic connection cable designed for reliable and efficient use in various industrial applications. With a robust construction and advanced features, this cable ensures seamless connectivity in challenging environments. Its flexible design allows for bending and torsional strain without compromising performance, making it ideal for dynamic installations. The cable is engineered to operate within a wide ambient temperature range, providing consistent functionality regardless of environmental conditions. Its gold-plated contacts enhance conductivity, while the silicone-free and halogen-free materials contribute to its durability and safety profile.

Resistant to oils and coolants
Permanent and reliable sealing even when mounted without tools
High protection rating for the requirements of harsh industrial environments
Vibration and shock resistant thanks to coupling ring with locking mechanism
Mechanical end stop to protect the O-ring from destruction

Brand	ifm
Series	EVC
Number of Cores	3
Cross Sectional Area	0.25 mm²
Length	300mm
Sheath Material	Polyurethane PUR
Sheath Colour	Black
Connector 1	M8
Connector 1 Number of Contacts	1
Connector 1 Gender	Male
Connector 1 Orientation	Straight
Connector 2 Number of Contacts	1
Connector 2	M8
Connector 2 Gender	Female
Connector 2 Orientation	Straight
