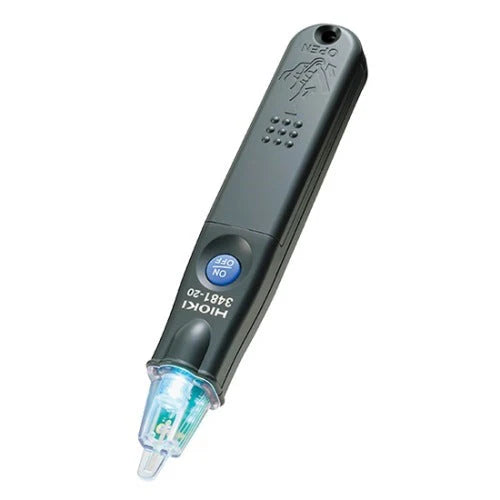

Hioki 3481-20 Non Contact Voltage Detector

Name: Hioki 3481-20 Non Contact Voltage Detector
Brand: Hioki
SKU: 3481-20
Availability: OutOfStock

Part Number : 3481-20

In terms of non-metallic contact test and measurement technology that enhances workplace safety, Hioki is a market leader. Even in low-light conditions, the Hioki 3481, a pen-shaped, non-metallic contact voltage detector with a bright LED light, enhances worker safety and productivity. The LED illuminates red and emits an auditory signal when voltage is sensed.

Availability: in stock

Specifications
Features
Downloads

Range	40 V to 600 V AC (50 Hz/60 Hz).
Rating	CAT IV 600 V, ensuring protection in high-risk electrical environments.
Indicators	Dual alert system with a red LED and an audible buzzer upon detection.
Sensitivity Adjustment	Variable range from 40 V to 80 V AC, adjustable via a trimmer beneath the battery clip.
Power Source	3 LR44 button alkaline batteries providing approximately 5 hours of continuous use.
Dimensions & Weight	20 mm (W) x 126 mm (H) x 15 mm (D); weight is 30 g including batteries.

Pen-style, a compact detector with a pocket clip
Both visual and audible voltage detection indication
Meets safety standards for CAT IV 600 V environments
Non-contact detection of AC voltage from 40 V to 600 V with bright LED light
Prevent dead batteries with battery self-check function and auto power-off function
