Gagemaker LG-6001 | 2-Point External Lead Gage | 0.0005" Resolution, ½" – 2" Thread Length

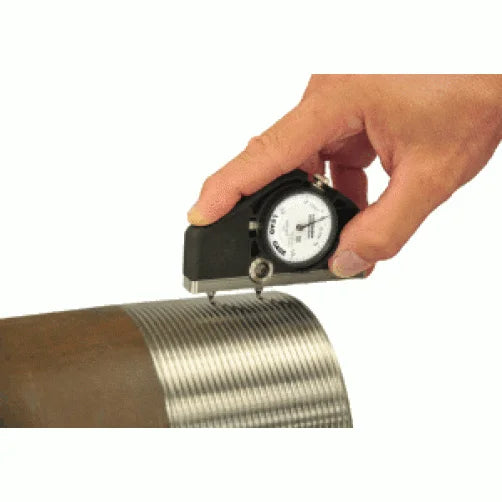

With 0.0005" resolution and a ½" – 2" thread length range, the LG-6001 is a 2-point external lead gage. Two contact points and a sweeping motion let the LG-6001 measure lead on straight and tapered threads.
- LG-6001: 0.0005" resolution, 0.100" indicator travel
- LG-6001 contact point spacing 0.200", minimum bore 2.750"
- 2 point contact on external threads, ½" – 2" thread length (LG-6001)
- Interchangeable contact points on the LG-6001 suit a variety of thread forms (default set included; alternatives on request)
- Set the LG-6001 to a nominal dimension on a lead setting standard (ANSI/API) first
- Specifications
- Features
- Downloads
| Part Number | Gagemaker LG-6001 |
| Brand | Gagemaker |
| Type | External |
| No. of Contact Points | 2 |
| Resolution | 0.0005" |
| Contact Point Spacing | 0.200" |
| Min Bore | 2.750" |
| Thread Length Range | ½" – 2" (12.7 mm – 50.8 mm) |
| Indicator Travel | 0.100" |
- Uses a three-point system for greater stability when inspecting parts (LG-5003).
- Uses interchangeable contact points to allow inspection on a variety of thread forms.
- Requires presetting using Gagemaker’s lead gage setting standards
- Supplied with one set of contact points. Customer may specify points.
