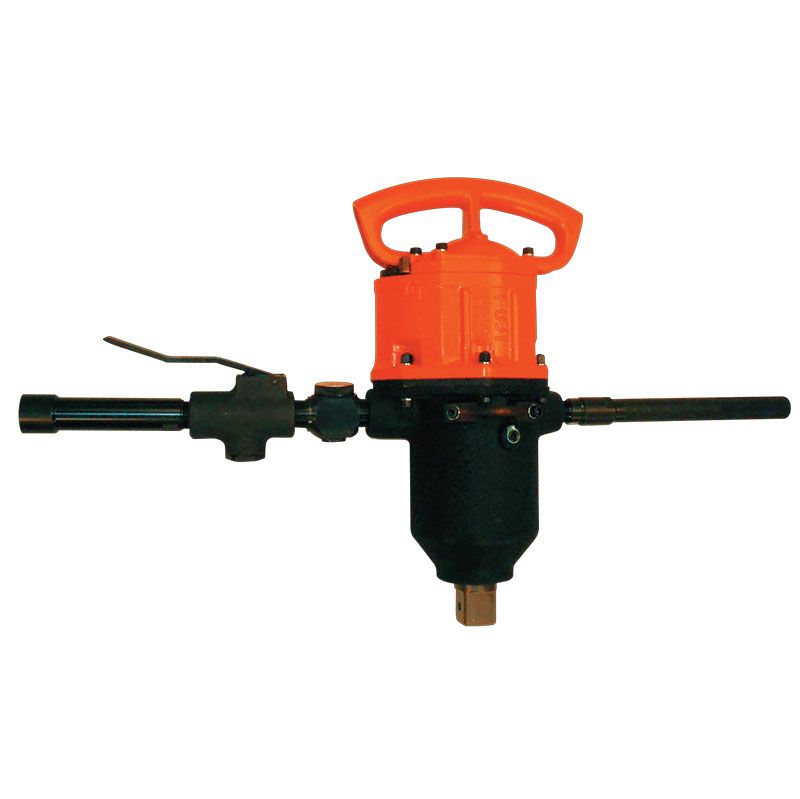

FUJI FW-50 | Impact Wrench | 1-1/2 in Square Drive, 5900 Nm
The FUJI FW-50 is a T-handle impact wrench with working torque of 4400 to 5900 Nm and a square drive listed as 1-1/2 in. Its double clutch is designed for lower vibration and longer service life in demanding industrial environments. It needs a 19 mm minimum hose, and sound pressure is rated at 104 dB(A) with vibration below 2.5 m/s².
Key features
- Reverse torque up to 6000 Nm
- Twin hammer impact mechanism
- Free speed 4000 rpm
- Air at load: 32 l/s (67 cfm); 1 in inlet
- Length 500 mm; weight 33 kg
- Specifications
| Part Number | FW-50 |
| Brand | FUJI |
| Product | Impact wrench |
| Output drive size (in) | 1-1/2 |
| Output drive type | Sq |
| Max working torque fwd | 5900 Nm / 4350 ft.lbf |
| Min working torque fwd | 4400 Nm / 3250 ft.lbf |
| Max torque reverse | 6000 Nm / 4430 ft.lbf |
| Free Speed | 4000 rpm |
| Weight | 33 kg / 72.7 lb |
| Impact mechanism | Twin hammer |
| Handle type | Straight handle |
| Air consumption at load | 32 l/s / 67 cfm |
| Air inlet thread size (in) | 1 |
