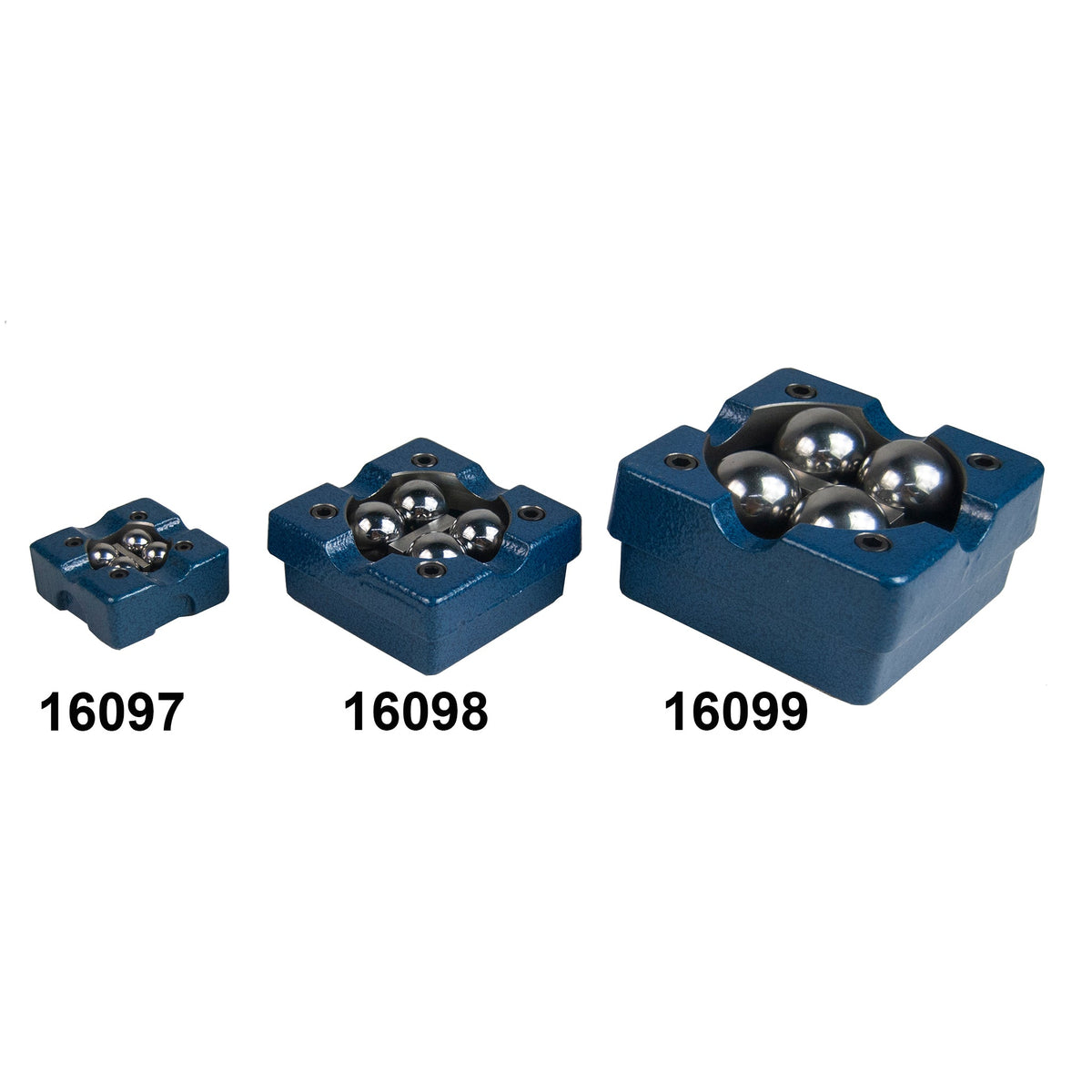

Flexbar 16097 | Ball Bearing V-Block | Small 2 x 2 x 1 in, No Clamps
Part Number : 16097

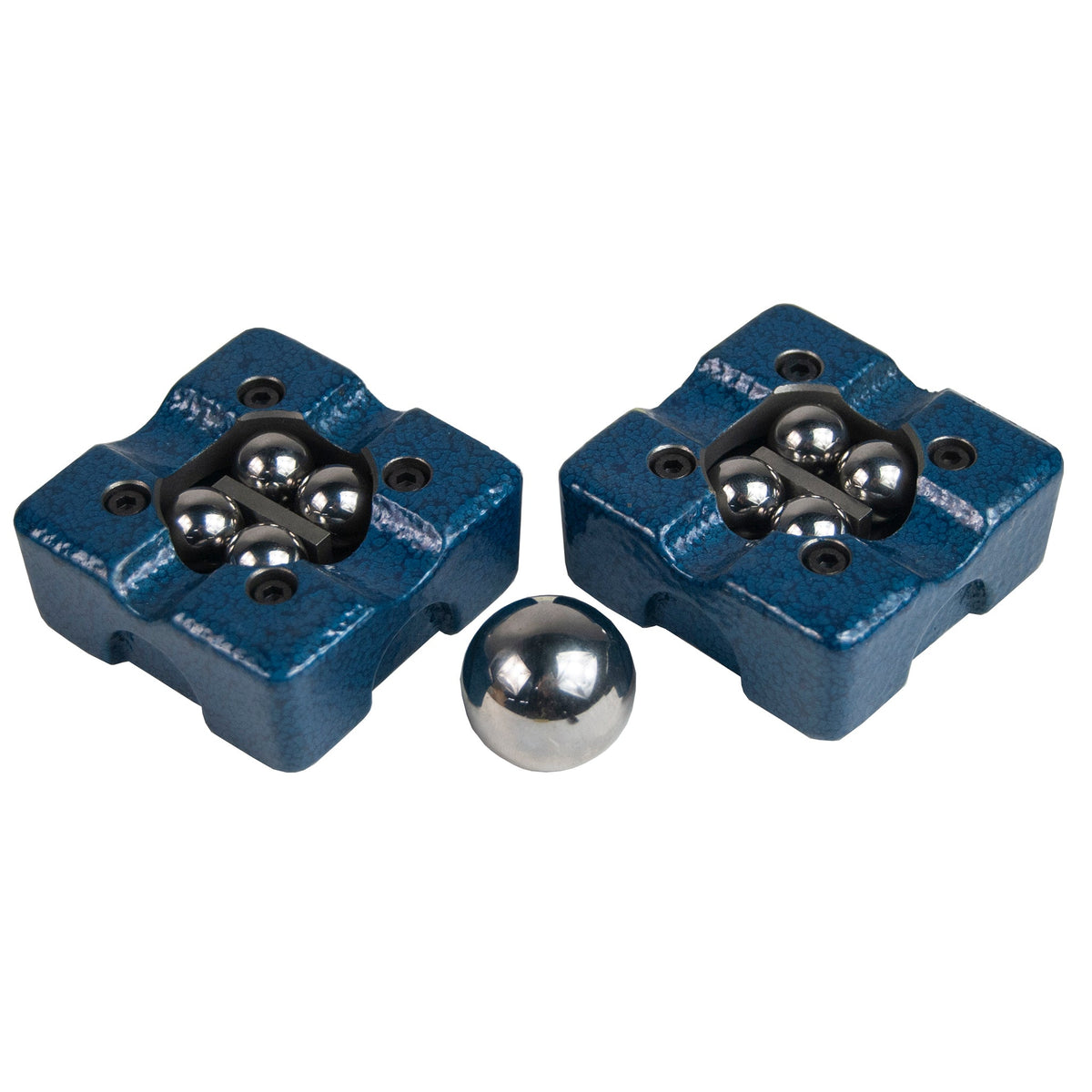

Flexbar 16097 is the small 2 x 2 x 1 in ball bearing V-block, sold as a matched pair without clamps and complete with a test ball. Flexbar lists the small size for diameters of 3/64-2½ in. The precision balls fixed in each block allow out-of-round conditions and lobes to be detected with no damage to the part.
Key features
- Ball sphericity 25 millionths of an inch
- Overall accuracy of matched pair ±5 microns
- Balls Rockwell C-62, 0.2 microinch surface finish; calibrated balls certified
- Heat-stabilised, seasoned Class 40 cast iron base and housing
- 8 contact points per pair; one precision spacer per block gives two angles per pair
Note: the balls are fixed in the blocks and are not designed to rotate in use.
For pricing, please contact our experts.
