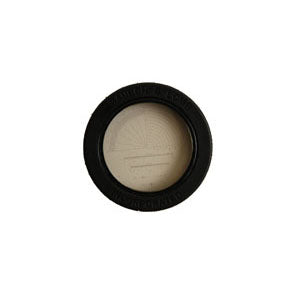

Flexbar 12314 | General Purpose Reticle | ⅛ to 5.8 in, Angles and 10 mm Scale
Part Number : 12314
Flexbar 12314 is a general purpose reticle with an inch scale from ⅛ to 5.8 in in 1/32 in increments. It also carries angles in degrees to 90, a 10 mm scale in 0.1 mm increments, a ½ in scale in .005 in increments, and line widths of .001, .002 and .003 in.
Key features
- ⅛ to 5.8 in scale in 1/32 in increments
- Angles in degrees to 90
- 10 mm scale in 0.1 mm increments
- ½ in scale in .005 in increments
- Line widths .001, .002 and .003 in
Lens data listed on the same page: 7X and 10X power, 20D and 40D, .78 in and .62 in size, 1.5 in and 1.0 in focus.
For pricing, please contact our experts.
