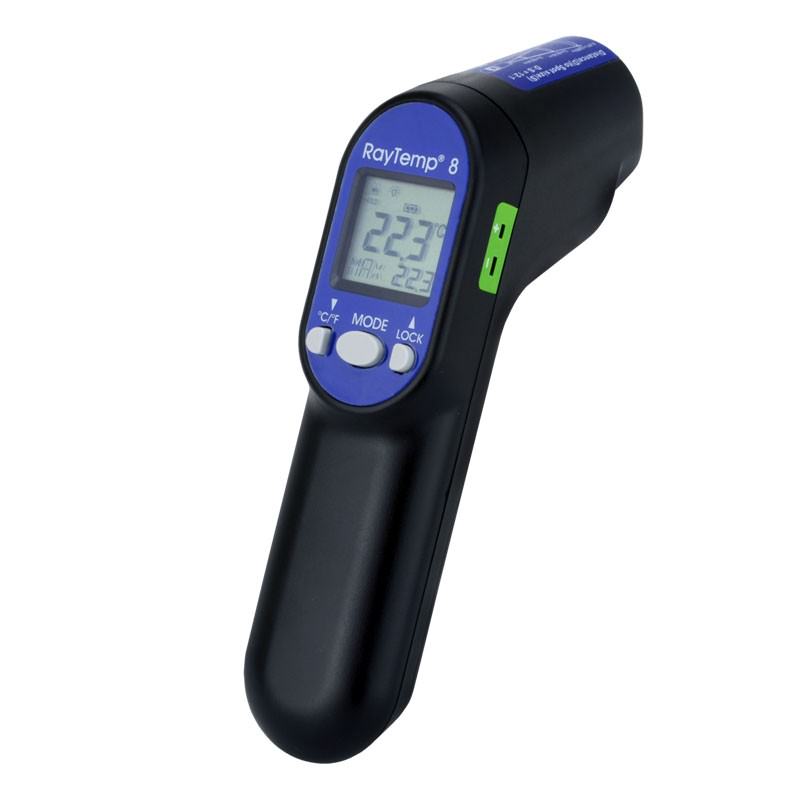

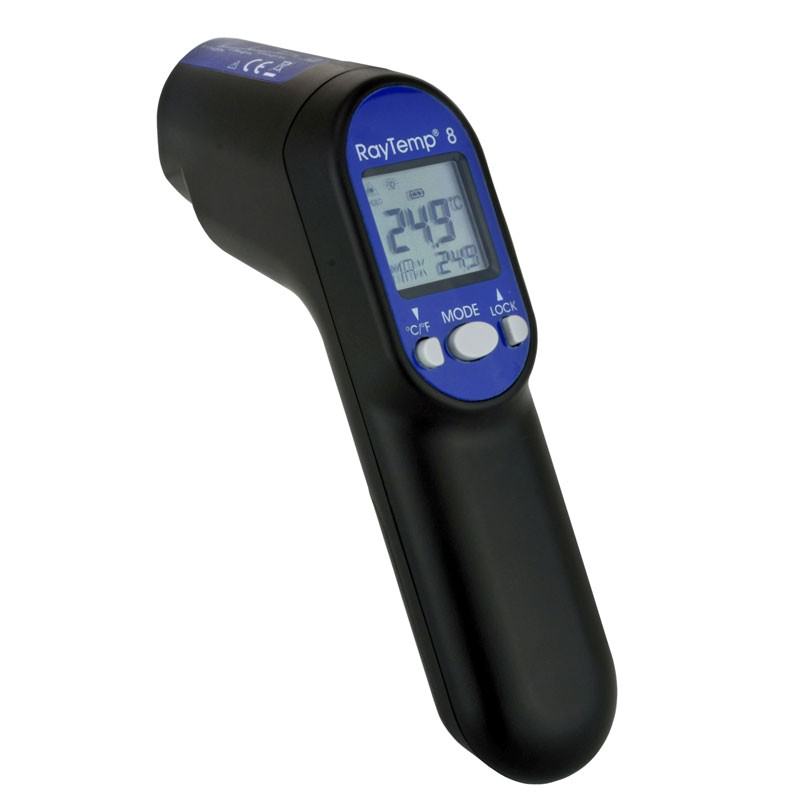

ETI 814-045 | RayTemp 8 Infrared Thermometer | Type K Socket, 12:1
The ETI 814-045 is the RayTemp 8 instrument on its own: an infrared thermometer with an integral Type K thermocouple socket, so one unit handles both non-contact and probe readings. Infrared measurement covers -60 to 500 °C at a 12:1 target ratio, and a connected probe reads -64 to 1370 °C. It is sold without a probe.
Key features
- Integral Type K thermocouple socket
- IR range -60 to 500 °C, 12:1 ratio
- Probe range -64 to 1370 °C
- Differential and average temperatures
- Sold exclusive of probe
- Specifications
- Downloads
| Part Number | 814-045 |
| Brand | ETI |
| IR Range | -60 to 500 °C |
| Probe Range | -64 to 1370 °C (Type K) |
| Target Ratio | 12:1 |
| Resolution | 0.1 °C (-9.9 to 199.9 °C), otherwise 1 °C |
| Emissivity | 0.95 default, adjustable 0.01 to 1 |
| Battery | 2 x AAA |
| Battery Life | 180 hours continuous use |
| Case Material | ABS plastic |
| Dimensions | 155 x 66 x 40 mm |
| Weight | 185 g |
