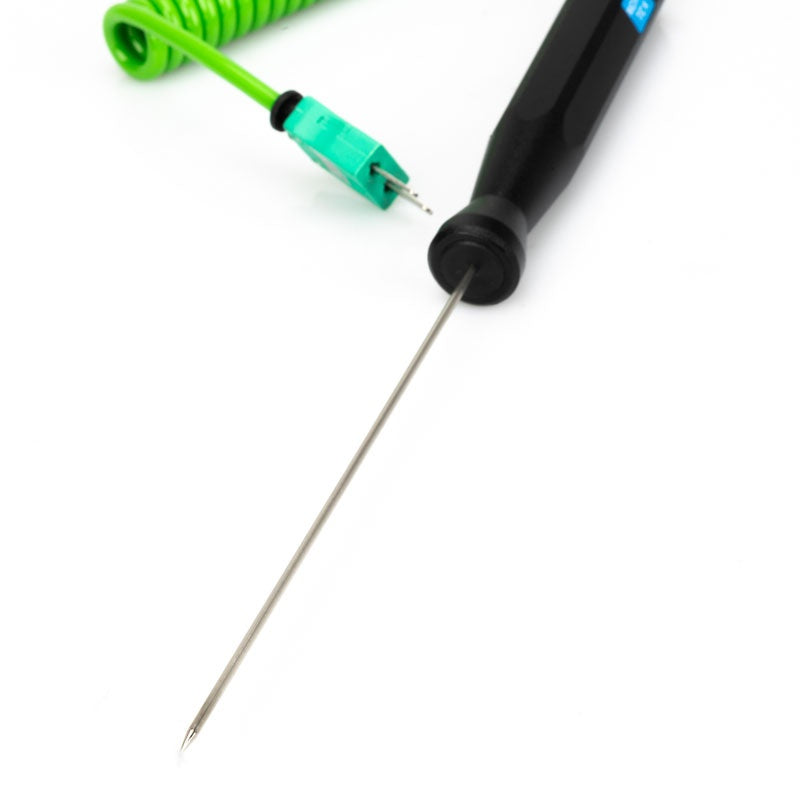

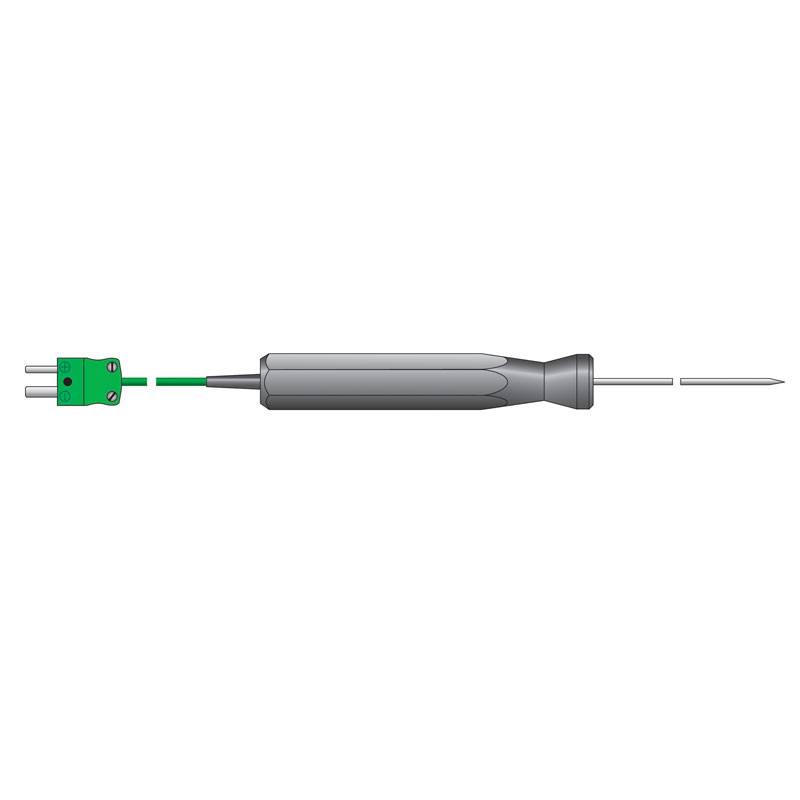

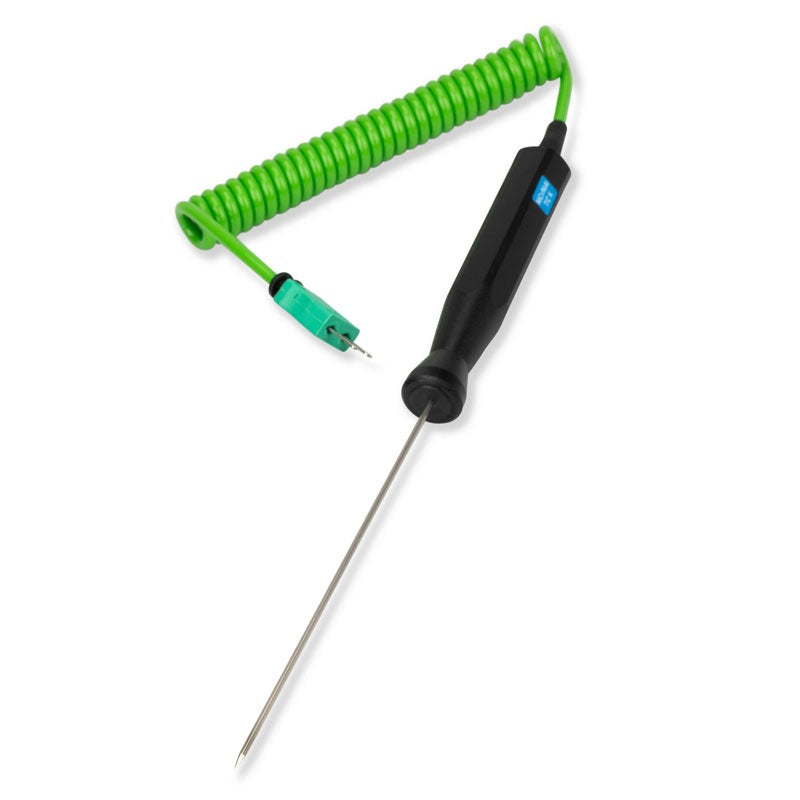

ETI 323-100 | Needle Penetration Temperature Probe | Type K, Coiled Lead, Ø1.8 x 130 mm
With a coiled lead and a type K sensor, the ETI 323-100 is the coiled-lead option in ETI's needle penetration probe range. Its Ø1.8 x 130 mm needle responds in under two seconds, readings cover -75 to 250 °C, and type K accuracy is ±0.5 °C between 0 and 100 °C. Connect it to any compatible type K thermometer.
Key features

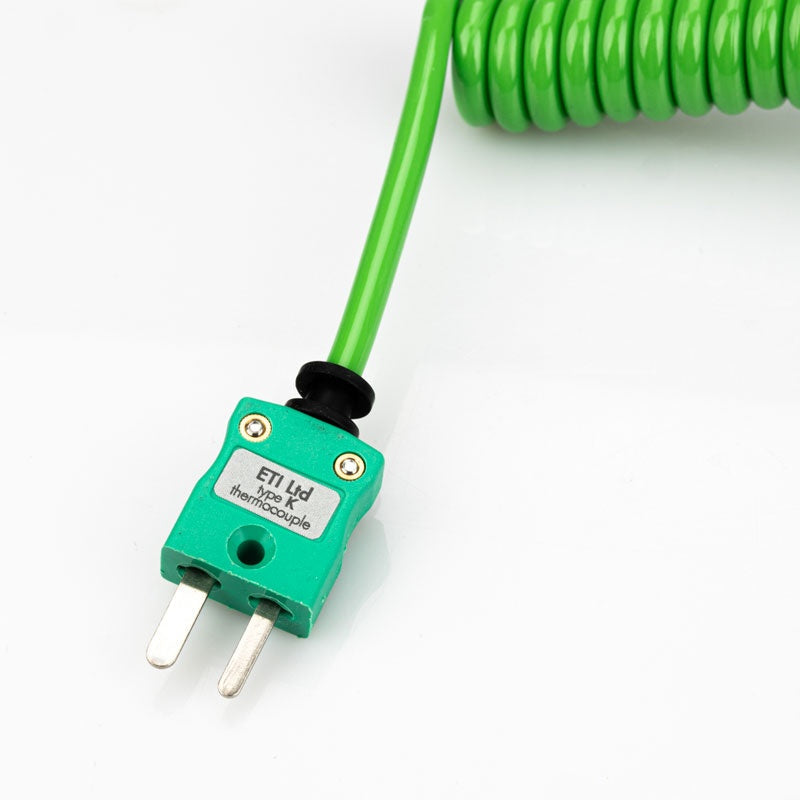

- Coiled lead
- Type K thermocouple

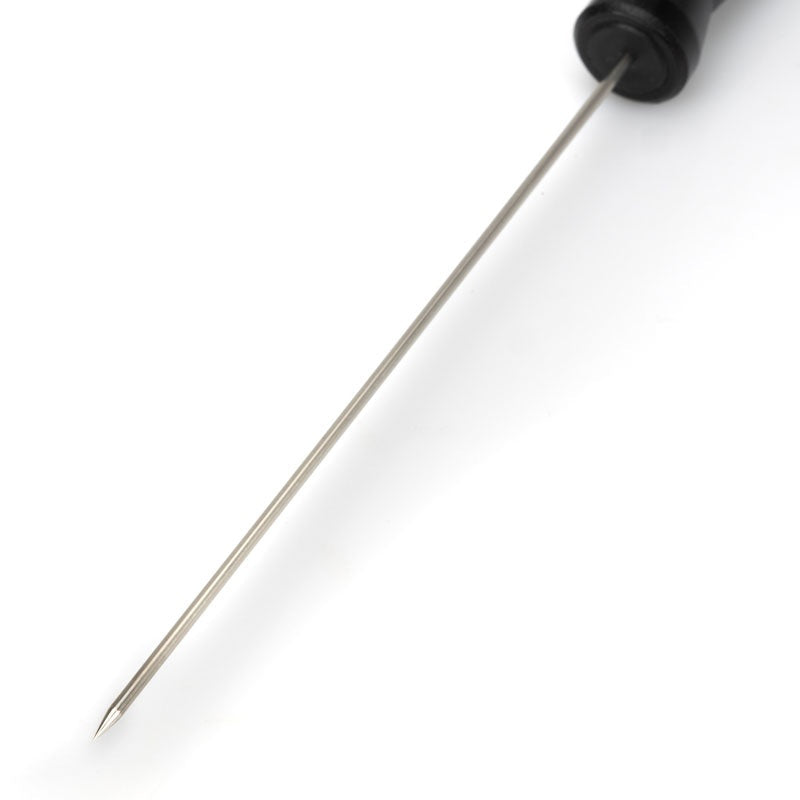

- Ø1.8 x 130 mm penetration needle
- Response under 2 seconds
- -75 to 250 °C, 250 °C maximum probe temperature
- Specifications
- Downloads
| Part Number | 323-100 |
| Brand | ETI |
| Sensor Type | Type K thermocouple |
| Lead Style | Coiled |
| Probe Dimensions | Ø1.8 x 130 mm |
| Probe Range | -75 to 250 °C |
| Max Probe Temperature | 250 °C |
| Accuracy | ±0.5 °C (0 to 100 °C) |
| Response Time | Less than 2 seconds |
