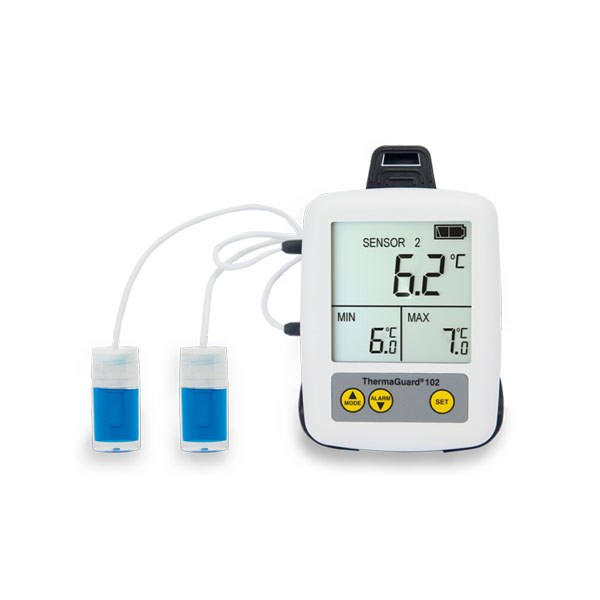

ETI 226-912 | ThermaGuard Pharm Vaccine Thermometer | Model 102

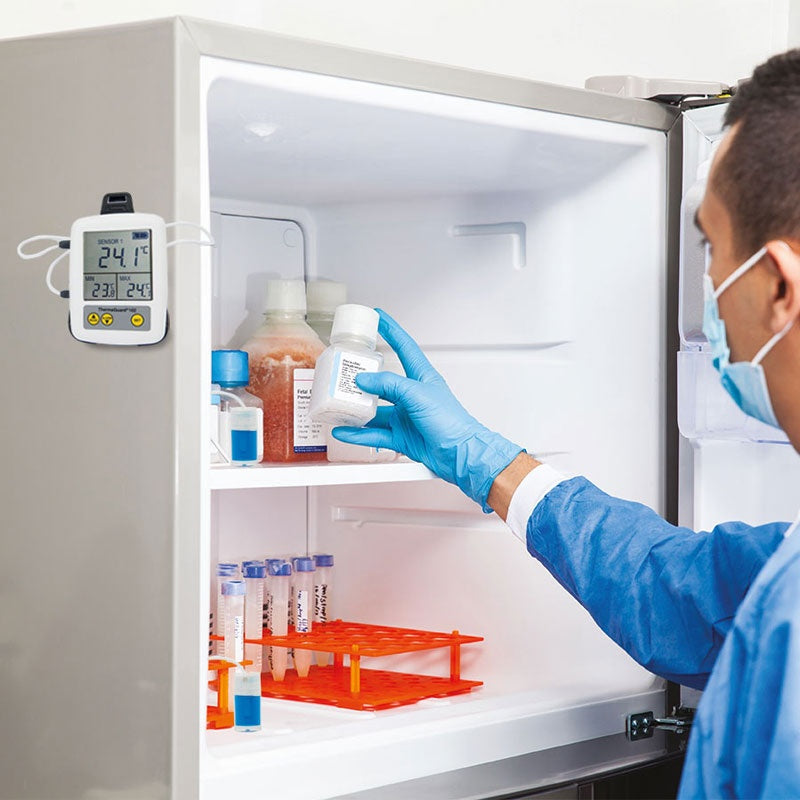

ETI part 226-912 is the ThermaGuard Pharm 102 with dual external sensors, for monitoring vaccines and medicines in two fridge locations. Each sensor simulates the contents temperature, and the unit adds programmable audible alarms and max/min memory.
Key features
- Model 102: dual external sensors on 2000 mm leads
- Sensors simulate fridge contents temperature
- External range -39.9 to 49.9 °C; internal -19.9 to 49.9 °C
- Programmable high/low audible alarms (82.1 dB) with max/min
- ±0.4 °C accuracy; conforms to EN 13485
- Specifications
- Downloads
| Part Number | 226-912 |
| Brand | ETI |
| Model | 102 |
| Sensors | Dual external sensors |
| Assured Accuracy | Yes |
| Range | -39.9 to 49.9 °C |
| Internal Range | -19.9 to 49.9 °C |
| Accuracy | ±0.4 °C |
| Resolution | 0.1 °C |
| Alarm | High/low audible, 82.1 dB |
| Lead | 2000 mm straight PVC |
| IP Rating | IP54 |
| Battery | 2 x AA |
| Battery Life | 25,000 hours |
| Dimensions | 96 x 73 x 29 mm |
| Conforms To | EN 13485 |
