Dwyer Instruments WPTN-A-C-03-1 | Multi-Jet plastic water meter with NSF Approval | 3/4" X 1" pipe size with 1 gallon pulse output - generaltechuae

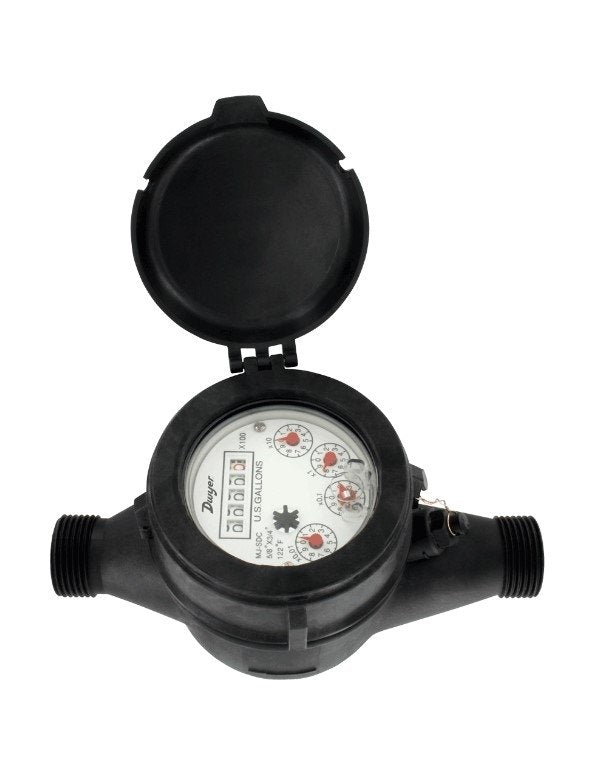

Dwyer WPTN-A-C-03-1 | NSF Multi-Jet Plastic Water Meter | 3/4" x 1", 1 gal/pulse

Part Number : WPTN-A-C-03-1

With a 1 gal/pulse pulse and 3/4" x 1" connection, the Dwyer WPTN-A-C-03-1 is a plastic multi-jet water meter carrying NSF certification. On the WPTN-A-C-03-1, plastic meters of this type are used where standard brass is unsuitable, such as potable water, some corrosive settings or cost-sensitive totalising.

  • Accuracy ±1.5% at nominal and ±3% at minimum flow (WPTN-A-C-03-1)
  • 3/4" x 1" body rated to 150 psi (10 bar)
  • WPTN-A-C-03-1 wetted materials: PA body and couplings, ABS chamber
  • Output of 1 gal/pulse with frequency proportional to flow, rated 0.01 A @ 24 VAC/DC (WPTN-A-C-03-1)
  • Horizontal mounting, face up; weight 2.43 lb (1.1 kg)
Availability: in stock
Free Saudi Arabia shipping available
For pricing, please contact our experts.
