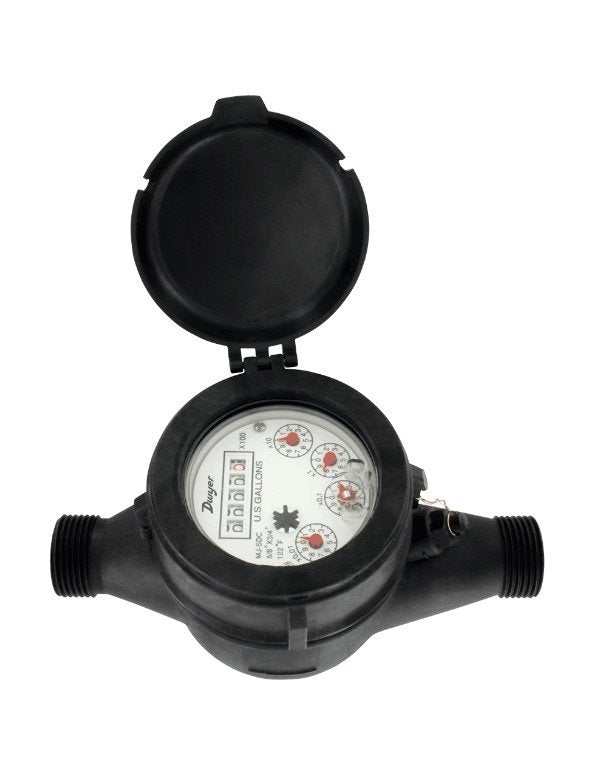

Dwyer WPTN-A-C-02-10 | NSF Multi-Jet Plastic Water Meter | 5/8" x 3/4", 10 gal/pulse

Part Number : WPTN-A-C-02-10

For 5/8" x 3/4" pipework, the NSF-certified Dwyer WPTN-A-C-02-10 multi-jet meter totals water use in gallons and sends a 10 gal/pulse signal. The WPTN-A-C-02-10 is an option where brass is not compatible, for example in potable water lines, certain corrosive conditions or when an economical totaliser is preferred.

  • Accuracy ±1.5% at nominal and ±3% at minimum flow (WPTN-A-C-02-10)
  • 5/8" x 3/4" body rated to 150 psi (10 bar)
  • WPTN-A-C-02-10 wetted materials: PA body and couplings, ABS chamber
  • Output of 10 gal/pulse with frequency proportional to flow, rated 0.01 A @ 24 VAC/DC
  • Horizontal mounting, face up; weight 1.77 lb (0.8 kg)
Availability: in stock
Free Saudi Arabia shipping available
For pricing, please contact our experts.
