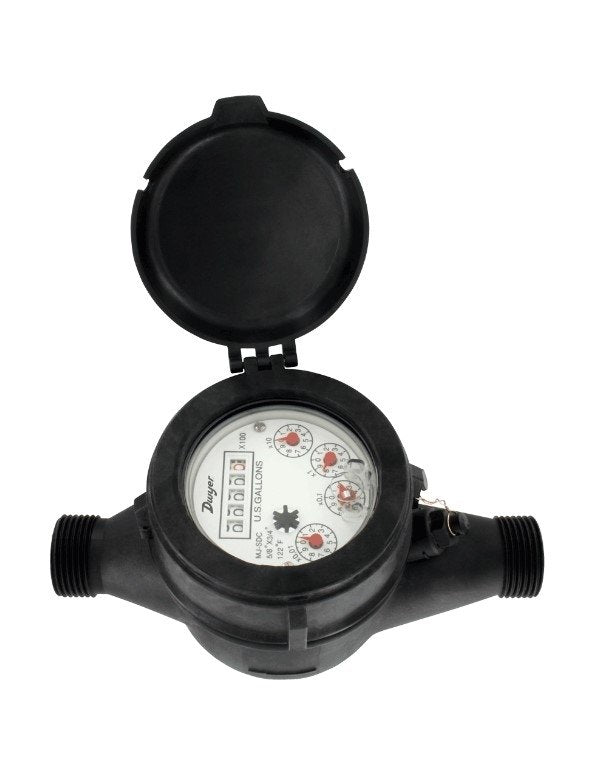

Dwyer Instruments WPTN-A-C-01 | Multi-Jet plastic water meter with NSF Approval | 5/8" X 1/2" pipe size with 0.1 gallon pulse output - generaltechuae

Dwyer WPTN-A-C-01 | NSF Multi-Jet Plastic Water Meter | 5/8" x 1/2", 0.1 gal/pulse

Part Number : WPTN-A-C-01

With a 0.1 gal/pulse pulse and 5/8" x 1/2" connection, the Dwyer WPTN-A-C-01 is a plastic multi-jet water meter carrying NSF certification. The WPTN-A-C-01 suits applications where brass meters are a poor match, including potable water, some corrosive environments and low-cost totalising.

  • Accuracy ±1.5% at nominal and ±3% at minimum flow (WPTN-A-C-01)
  • 5/8" x 1/2" body rated to 150 psi (10 bar) (WPTN-A-C-01)
  • WPTN-A-C-01 wetted materials: PA body and couplings, ABS chamber
  • Output of 0.1 gal/pulse with frequency proportional to flow, rated 0.01 A @ 24 VAC/DC
  • Horizontal mounting, face up; weight 1.55 lb (0.7 kg) (WPTN-A-C-01)
Availability: in stock
Free Saudi Arabia shipping available
For pricing, please contact our experts.
