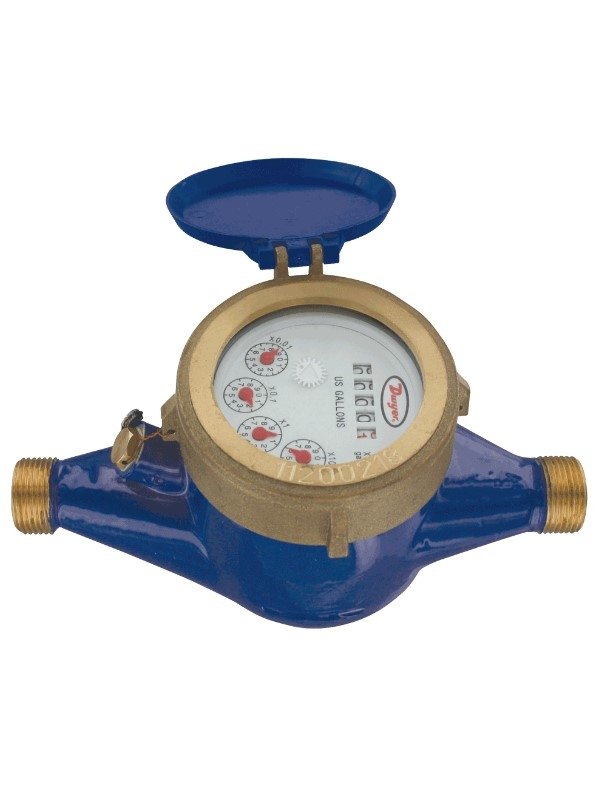

Dwyer WMT2-B-C-12-1 | Brass Multi-Jet Water Meter | 1-1/4" BSPT (32mm), 1 L/pulse
Sized for 1-1/4" BSPT (32mm) pipework, the WMT2-B-C-12-1 from Dwyer is a brass multi-jet water meter whose pulse signal comes from a reed switch and tracks flow rate. The WMT2-B-C-12-1 register totalises consumption in gallons or m³, while the 1 L/pulse output feeds counters or controllers.
- WMT2-B-C-12-1 flow ratings: nominal flow 0.48 to 6 m³/h, maximum 12 m³/h, transitional 0.12 m³/h
- Accuracy of the WMT2-B-C-12-1: ±2% nominal flow, ±5% transitional flow
- Rated to 232 psi (16 bar) and 104°F (40°C) maximum (WMT2-B-C-12-1)
- Brass and polyethylene body, brass couplings on the WMT2-B-C-12-1
- Pulse wiring on the WMT2-B-C-12-1: colour-coded leads 4.5 ft (1.5 m), 0.01 A @ 24 VAC/DC
- Install the WMT2-B-C-12-1 horizontally with the register facing up
- Specifications
- Features
- Downloads
| Part Number | WMT2-B-C-12-1 |
| Brand | Dwyer |
| Type | Brass Multi-Jet Water Meter |
| Pipe Size | 1-1/4" BSPT (32 mm) |
| Pulse Output | 1 L/pulse |
| Accuracy | ±2% nominal flow, ±5% transitional flow |
| Max Operating Pressure | 232 psi (16 bar) |
| Max Operating Temperature | 104 °F (40 °C) |
| Wetted Materials | Brass and polyethylene body, brass couplings |
| Nominal Flow | 0.48 to 6 m³/h |
| Maximum Flow | 12 m³/h |
| Transitional Flow | 0.12 m³/h |
| Electrical | 0.01 A @ 24 VAC/DC, 4.5 ft (1.5 m) leads |
- Even in low flow applications, multi-jet design offers simplicity and precision throughout a wide flow range.
- Hermetically sealed, magnetically powered register that is totally isolated from the water and doesn't leak or fog.
- Designed to operate without maintenance and with a long service life, even in challenging environments.
- An integrated strainer guards against particle damage to the meter.
- Coupler adapters are supplied, making installation simple.
