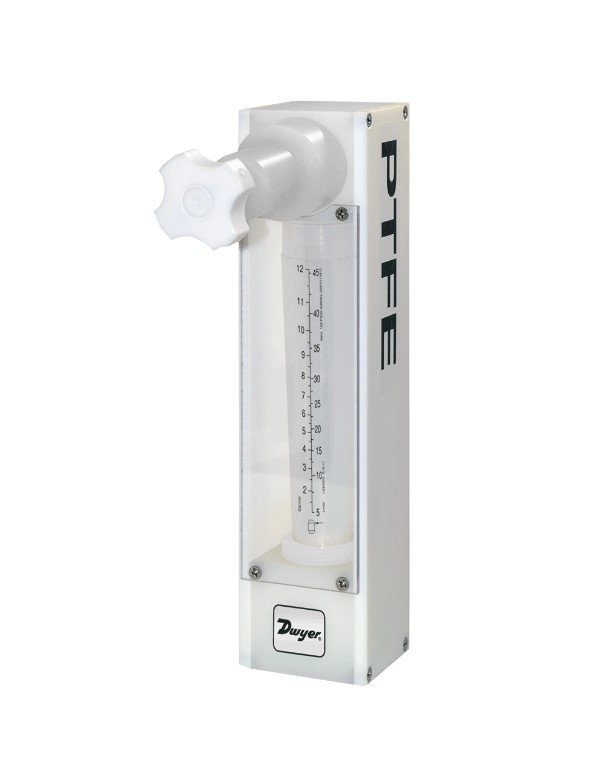

Dwyer TVA1307 | All-Fluoropolymer Flowmeter | 2500 ml/min (39.6 GPH) Water, 3/8" NPT, 75 mm Scale
The Dwyer TVA1307 is an all-fluoropolymer flowmeter rated 39.6 GPH (2500 ml/min) of water, with a 75 mm scale and 3/8" female NPT ports. Because every wetted part is fluoropolymer, the 2500 ml/min meter suits corrosive and high-purity liquid service.
- Maximum 100 psig (6.9 bar) at up to 250°F (121°C); leak integrity 1 x 10-7 sccs of helium
- Mount vertically
- Flowtube in PFA; float and end fittings in PTFE
- PCTFE float guide rods
- Rated ±5% FS at 21.1°C and 14.7 psia
- Repeatability of ±0.25%
- Specifications
- Features
- Downloads
| Part Number | TVA1307 |
| Brand | Dwyer |
| Flow Rate (Water) | 39.6 GPH (2500 ml/min) |
| Scale Length | 75 mm, direct reading |
| Process Connection | 3/8" female NPT |
| Accuracy | ±5% FS @ 70 °F (21.1 °C) and 14.7 psia |
| Repeatability | ±0.25% |
| Turn-down Ratio | 10:1 |
| Max. Pressure | 100 psig (6.9 bar) |
| Max. Temperature | 250 °F (121 °C) |
| Wetted Materials | Flowtube: PFA; float and end fittings: PTFE; guide rods: PCTFE |
| Leak Integrity | 1 x 10-7 sccs helium |
| Mounting | Vertical |
- Made specifically to work with a variety of chemicals and be compatible with high purity or corrosive liquid applications.
- All of the fluoropolymer materials used in the construction of the flowmeters improve their resistance to corrosion and guarantee their compatibility with a wide range of harsh chemicals.
- Allows for simple and accurate flow rate monitoring with a 0 to 10 scale and graduations that represent discrete flow rates.
