Dwyer Instruments TR-7-AB | Ground Continuity Control with 36" cable | Battery type contactor

Name: Dwyer Instruments TR-7-AB | Ground Continuity Control with 36" cable | Battery type contactor
Brand: Dwyer
SKU: TR-7-AB
Availability: OutOfStock

Part Number : TR-7-AB

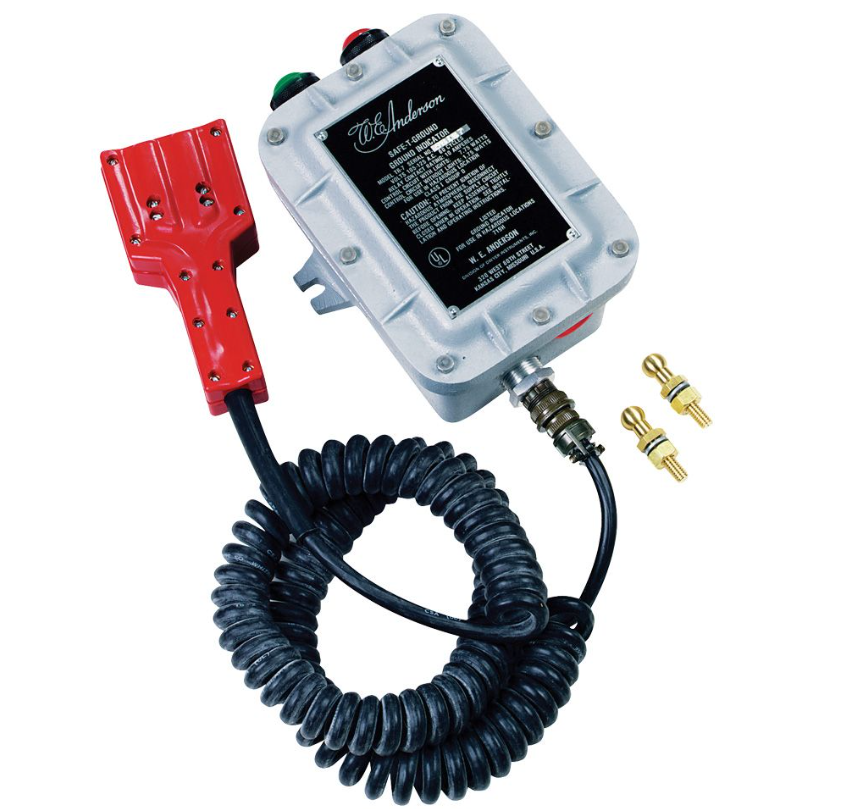

TR-7-AB Dwyer Safe-T-Ground is a product rated for hazardous locations and explosion proof. It runs on 105-125 VAC 60 Hz power and has a temperature range of -13 to 104°F (-25 to 40°C). The housing is composed of a cast aluminum alloy free of copper. The electrical rating is 125 VAC, 60 Hz, 10 amps, DPDT. The dimensions of the object are 6-5/8" W x 10-3/8" H x 5-5/8" D, and it has a 3/4" NPT conduit connection. It has an extended 16' cable that may be coiled, and it has a grounding clamp with contact clips made of beryllium copper.

Availability: in stock

Free Saudi Arabia shipping available

Specifications
Features
Downloads

Component	Ground Control
Connection	Conduit: 3/4" NPT
Current Rating	DPDT, 10 amps, 125 VAC, 60 Hz contact rating
Housing	356-T6 cast aluminum alloy (copper free), explosion-proof - Class I, Group D
Installation	7/16" mounting lugs, integrally cast
Manufacturer	Dwyer
Power	105-125 VAC 60 Hz 7.75 watts - with light, 1.75 watts - without lights. Optional 220-240 VAC, 50/60 Hz
Size	6-5/8" W x 10-3/8" H x 5-5/8" D
Supply Voltage AC	Instrument-Sensor: 105-125 VAC
Supply Voltage AC	Instrument-Sensor: 220-240 VAC
Temperature Range	Instrument-Sensor: -13 - 104°F/-25 - 40°C
Temperature	Temperature Limits: -13 to 104°F (-25 to 40°C)
Weight (for shipping)	20 lb with contactor and cord
