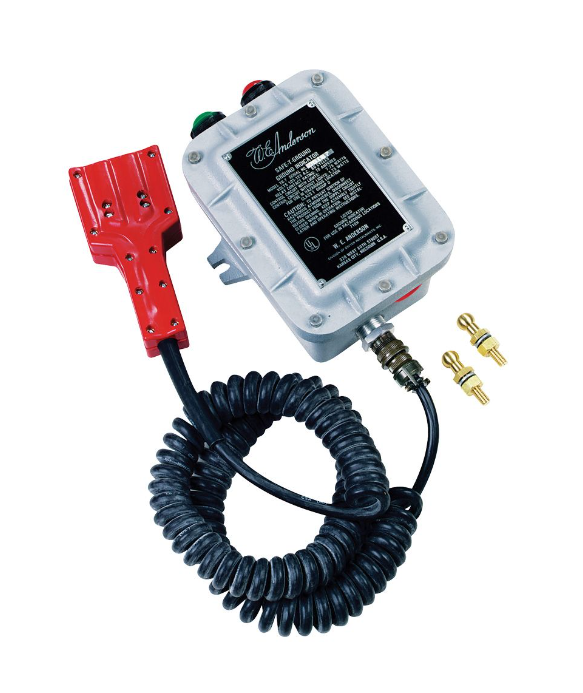

Dwyer TR-7-A | Ground Continuity Control | 36" Cable, Stud Contactor
Dwyer TR-7-A is a Safe-T-Ground ground continuity control for hazardous locations, supplied with a 36" cable and a stud-type contactor. The TR-7-A runs on 105-125 VAC, 60 Hz.
- Stud-type contactor with beryllium copper contact clips; 36" cable
- Explosion-proof copper-free 356-T6 cast aluminium housing, Class I Group D; operating range -13 to 104°F (-25 to 40°C)
- DPDT contacts rated 10 A, 125 VAC, 60 Hz; 3/4" NPT conduit connection; 7/16" mounting lugs; terminal strip wiring
- Enclosure 6-5/8" W x 10-3/8" H x 5-5/8" D; 16-2 type SO coiled cable extending to 16 ft
- Specifications
- Features
- Downloads
| Part Number | TR-7-A |
| Brand | Dwyer |
| Cable | 36" |
| Contactor | Stud-type |
| Pilot Lights | No |
| Contact Rating | DPDT, 10 A, 125 VAC, 60 Hz |
| Housing | 356-T6 cast aluminium, explosion-proof, Class I Group D |
| Conduit | 3/4" NPT |
| Mounting | 7/16" lugs, integrally cast |
| Size | 6-5/8" W x 10-3/8" H x 5-5/8" D |
| Temperature Limits | -13 to 104 °F (-25 to 40 °C) |
| Shipping Weight | 20 lb with contactor and cord |
| Supply Voltage | 105-125 VAC, 60 Hz |
- Housing that is safe against explosions.
- An audible alert and LED status lights.
