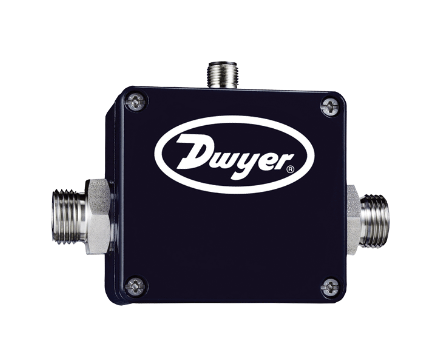

Dwyer Instruments MFS-12 | Magnetic flow sensor | Range 0.25 to 5.3 GPM (1 to 20 LPM) | 1/4 I.D. | 1/2" NPT process connection | Frequency & analog output signal
The compact, 316 SS body, in-line flowmeters with pulse and optional analog 4–20 mA output are called Model MFS-12 Magnetic Inductive Flow Sensors. It is offered with process connection sizes of 1/2" and 1" NPT and flow ranges of 0.25 to 52.8 GPM (1 to 200 LPM).
- Specifications
- Features
- Downloads
| Accuracy | +/-2% of reading |
| Connection | Electrical: Plug connector M12x1 |
| Connection | Process: 1/2" NPT |
| Current consumption [mA] | Max 80 mA |
| Enclosure Rating | NEMA 4 (IP65) |
| Flow Indication | LED green, flow proportional blinking |
| Loop Resistance | 250 ¢ž¦ |
| Manufacturer | Dwyer Instruments |
| Material | Wetted: Electrodes: 316 SS Process connections: MFS: 316 SS Measuring pipe: MFS: PEEK-GF30 Gasket: EPDM |
| Maximum Operating Pressure | MFS: 232 psi (16 bar) |
| Maximum operating temperature | Process: 32 to 194°F (0 to 90°C) Ambient: 41 to 158°F (5 to 70°C) |
| Minimum Conductivity of Medium | 50 µS/cm |
| Output | Frequency: Square-wave, NPN or PNP Analog: 4-20 mA |
| POWER CONSUMPTION | 0.6 W |
| Power | 24 VDC +/-10% |
| Range | 0.25 to 5.3 GPM (1 to 20 LPM) |
| Repeatability | 1% |
| Response Time | < 500 ms |
| Type | Magnetic Flow Sensor |
| Weight | 1.5 lb (0.68 kg) |
- Long lifespan without any wear and tear on the working parts.
- Can be used in situations when the flow has no mechanical components and the media is polluted.
- Low pressure drop is produced by a pipe cross-section devoid of obstructions.
- Not impacted by variations in concentration, density, viscosity, or temperature.
